Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral wire hydraulic hose applications. The innovative two-piece, No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5X better corrosion-resistance than SAE ASTM B117 specification.

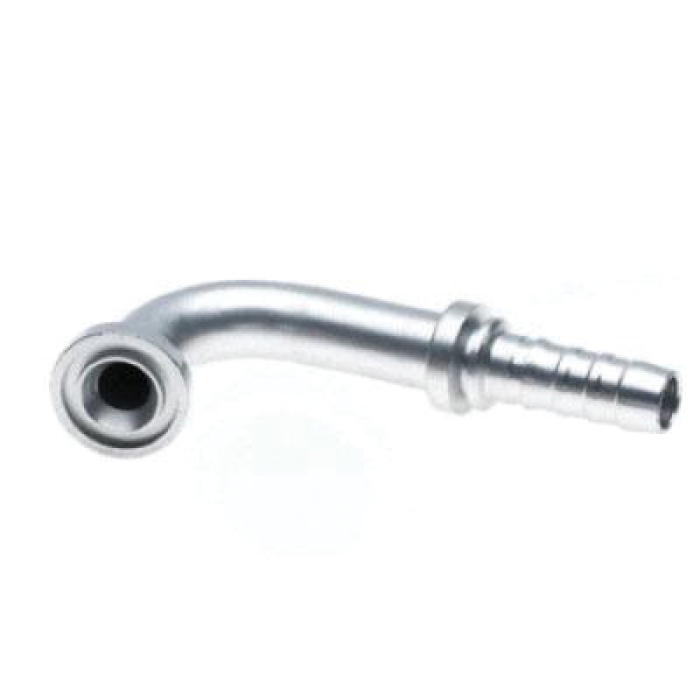

Gates® Crimp Hose Long Drop 90 deg Elbow, Female Gender 2, Connection Size 2: 3/8 in, 3/8 in Nominal, 9/16-18 Thread Size 2, 3/4 in Hex, 6000 psi, 1.98 in Cut-Off Factor, Steel, TuffCoat™, 250 deg F, 3/8 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 3/8 in, 06 Hose Dash, 3/8 in 37 deg JIC Flare Swivel Connection 2, Connection Type 2: 37 deg JIC Flare Swivel
| Fitting Type | : | 90 deg Elbow |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/8 in |
| Nominal Size | : | 3/8 in |
| Thread Size 2 | : | 9/16-18 |
| Hex Size | : | 3/4 in |
| Pressure Rating | : | 6000 psi |
| Cut-Off Factor | : | 1.98 in |
| Material | : | Steel |
| Finish | : | TuffCoat™ |
| Temperature Rating | : | 250 deg F |
| Hose Connection | : | 3/8 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 3/8 in |
| Hose Dash Size | : | 06 |
| Connection 2 | : | 3/8 in 37 deg JIC Flare Swivel |
| Connection Type 2 | : | 37 deg JIC Flare Swivel |
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Reduces parts inventory by 30% since only one stem is required for all spiral wire hose-types
- Surpasses 1 M impulse cycles
- One stem used for all spiral hoses
