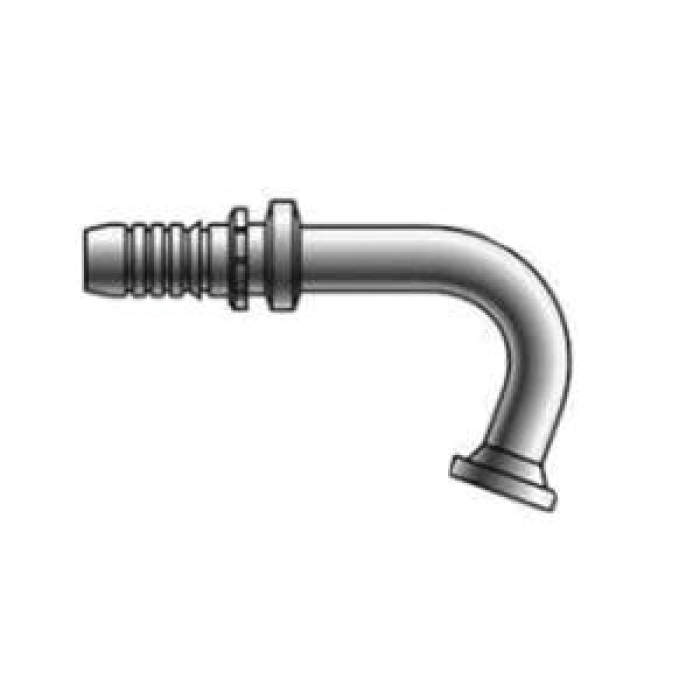

Gates® 24GSP-24FL120-119
Gates® GlobalSpiral™ Plus 24GSP-24FL120-119 Crimp Hose 120 deg Elbow, 1-1/2 in x 1-1/2 in, Hose x Code 61 Flange, Steel
- Manufacturers: Gates Corp
- Brand Name: Gates®
- Tipco Part No: GAT 24GSP-24FL120-119
- MPN: 24GSP-24FL120-119
- UPC: 770075417569
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral wire hydraulic hose applications. The innovative two-piece, No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5X better corrosion-resistance than SAE ASTM B117 specification.
Gates® Crimp Hose 120 deg Elbow, Connection Size 2: 1-1/2 in, 1-1/2 in Nominal, 3000 psi, 4.31 in Cut-Off Factor, Steel, TuffCoat™, 250 deg F, 1-1/2 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, 24 Hose Dash, 1-1/2 in Code 61 Flange Connection 2, Connection Type 2: Code 61 Flange
| Fitting Type | : | 120 deg Elbow |
| Connection Size 2 | : | 1-1/2 in |
| Nominal Size | : | 1-1/2 in |
| Pressure Rating | : | 3000 psi |
| Cut-Off Factor | : | 4.31 in |
| Material | : | Steel |
| Finish | : | TuffCoat™ |
| Temperature Rating | : | 250 deg F |
| Hose Connection | : | 1-1/2 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 1-1/2 in |
| Hose Dash Size | : | 24 |
| Connection 2 | : | 1-1/2 in Code 61 Flange |
| Connection Type 2 | : | Code 61 Flange |
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Reduces parts inventory by 30% since only one stem is required for all spiral wire hose-types
- Surpasses 1 M impulse cycles
- One stem used for all spiral hoses
