Gates® 24GSP-24MFFOR

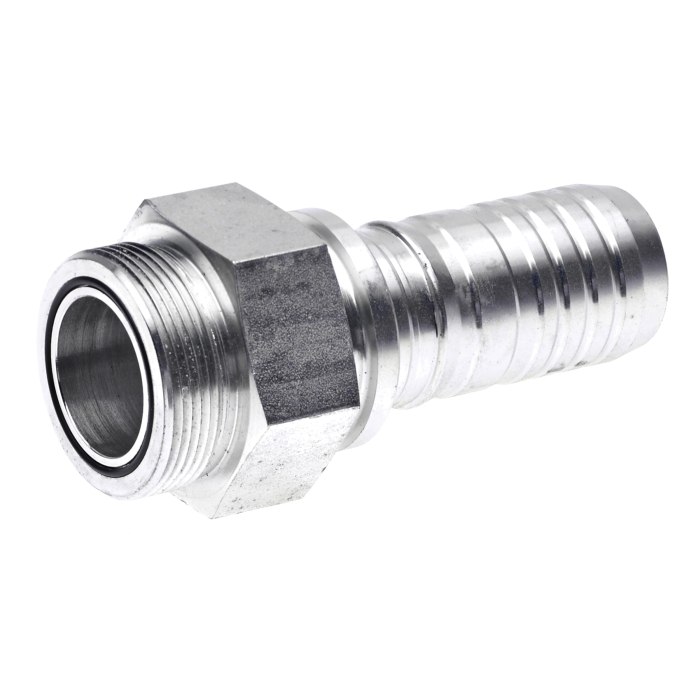

Gates® GlobalSpiral™ Plus 24GSP-24MFFOR Coupling, 1-1/2 in x 2 in, Hose x Flat Face O-ring, 6000 psi

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 24GSP-24MFFOR
  • MPN: 24GSP-24MFFOR
  • UPC: 770075361480
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® GlobalSpiral™ couplings provide and superior performance for extremely high-pressure, high-impulse spiral wire hydraulic hose applications. The innovative two-piece, No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Maximum application coverage - GlobalSpiral™ couplings are available in more than 80 thread configurations, so finding the right fit for your assembly has never been easier. GlobalSpiral™ thread ends are able to handle working pressures up to 6000 psi. Coated with TuffCoat® plating - more than 5X better corrosion-resistance than SAE ASTM B117 specification.

Gates® Coupling, Male Gender 2, Connection Size 2: 2 in, 2 in Nominal, 2-12 Thread Size 2, 55 mm Hex, 6000 psi, 2.22 in Cut-Off Factor, 5.12 in L, 250 deg F, 1-1/2 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, 2 in Flat Face O-Ring Connection 2, Connection Type 2: Flat Face O-Ring

Fitting Type      :      Coupling
Gender 2      :      Male
Connection Size 2      :      2 in
Nominal Size      :      2 in
Thread Size 2      :      2-12
Hex Size      :      55 mm
Pressure Rating      :      6000 psi
Cut-Off Factor      :      2.22 in
Dimensions      :      5.12 in L
Temperature Rating      :      250 deg F
Hose Connection      :      1-1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1-1/2 in
Connection 2      :      2 in Flat Face O-ring
Connection Type 2      :      Flat Face O-ring
  • Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
  • Reduces parts inventory by 30% since only one stem is required for all spiral wire hose-types
  • Surpasses 1 M impulse cycles
