Aeroquip® 6S25DSB16
Send Print
  1. pin-int

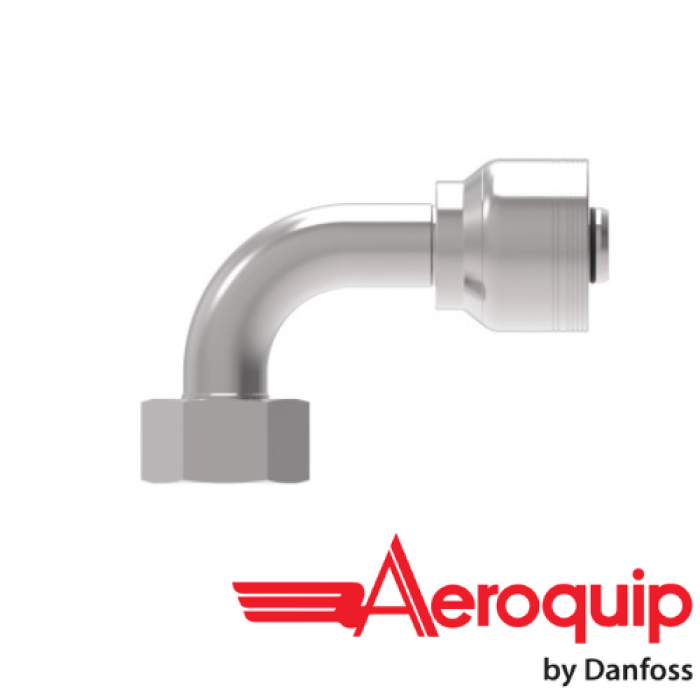

Aeroquip® 6S25DSB16

Aeroquip® 6S Series Dura-Kote Carbon Steel Female DIN Heavy 24 deg Seat Swivel 6-Spiral Crimp Hose 90 deg Elbow, 1 in x 30 mm

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 6S25DSB16
  • MPN: 6S25DSB16
  • UPC: 813688023458
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 6-Spiral Crimp Hose 90 deg Elbow, 6S Series, Hose Connection: 1 in, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: DIN Heavy 24 deg Seat Swivel, Gender 2: Female, Connection Size 2: 30 mm, Nominal Size: 30 in, Thread Size 2: M42 x 2, Hex Size: 1.969 in, Cut-Off Factor: 3.34 in, Carbon Steel, Finish: Dura-Kote, For Use With: FC500-32, FC273B-20 thru -32, FC606-16 thru -24, EC810-20 thru -32, GH466-20,-24 H471-32, EC810-20 thru -32, and H485-20,-24 Series Hoses, Dimensions: 5.886 in L x 2.338 in W x 4.161 in H, Dimension Standards: SAE J1176

Fitting Type      :      90 deg Elbow
Series      :      6S
Hose Connection      :      1 in
Connection Type 1      :      Hose
Connection Size 1      :      1 in
Hose Dash Size      :      16
Connection 2      :      30 mm Metric
Connection Type 2      :      DIN Heavy 24 deg Seat Swivel
Gender 2      :      Female
Connection Size 2      :      30 mm
Nominal Size      :      30 in
Thread Size 2      :      M42 x 2
Hex Size      :      1.969 in
Cut-Off Factor      :      3.34 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      FC500-32, FC273B-20 thru -32, FC606-16 thru -24, EC810-20 thru -32, GH466-20,-24 H471-32, EC810-20 thru -32, and H485-20,-24 Series Hoses
Dimensions      :      5.886 in L x 2.338 in W x 4.161 in H
Dimension Standards      :      SAE J1176

Danfoss's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

  • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
  • New patent pending dura-seal technology to eliminate hose assembly cool down leakage
  • Class zero leakage SAE J1176 on approved hose styles
  • Danfoss's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
