Aeroquip® 6SA32MP32
Send Print
  1. pin-int

Aeroquip® 6SA32MP32

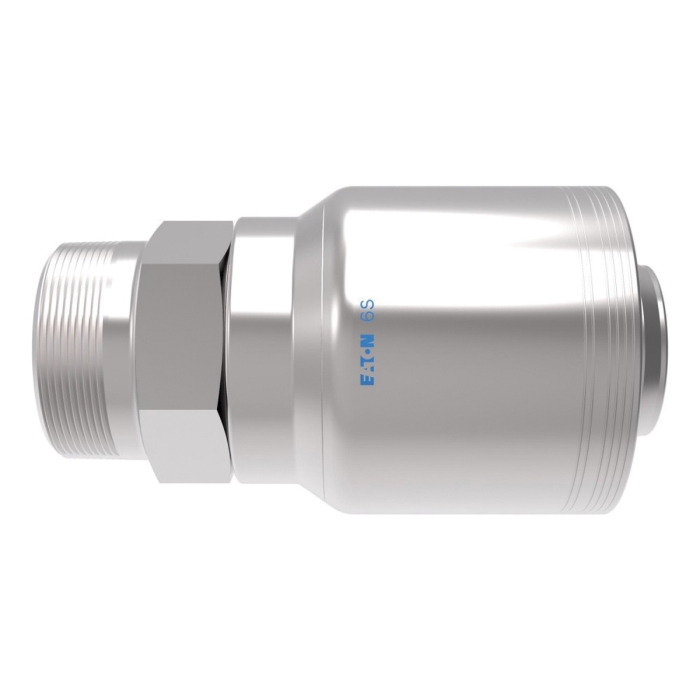

Aeroquip® 6S Series Dura-Kote Carbon Steel MNPTF 6-Spiral Rigid Crimp Straight Hose Fitting, 2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 6SA32MP32
  • MPN: 6SA32MP32
  • UPC: 815628023375
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 6-Spiral Rigid Crimp Straight Hose Fitting, 6S Series, Hose Connection: 2 in, Connection Type 1: Hose, Connection Size 1: 2 in, Hose Dash Size: 32, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 2 in, Nominal Size: 2 in, Thread Size 2: 2-11-1/2, Hex Size: 2-1/2 in, Cut-Off Factor: 2.84 in, Carbon Steel, Finish: Dura-Kote, For Use With: FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses, Dimensions: 5.91 in L x 3.39 in W x 3.56 in H, Dimension Standards: SAE J1176

Fitting Type      :      Straight Hose Fitting
Series      :      6S
Hose Connection      :      2 in
Connection Type 1      :      Hose
Connection Size 1      :      2 in
Hose Dash Size      :      32
Connection 2      :      2 in NPT
Connection Type 2      :      NPTF
Gender 2      :      Male
Connection Size 2      :      2 in
Nominal Size      :      2 in
Thread Size 2      :      2-11-1/2
Hex Size      :      2-1/2 in
Cut-Off Factor      :      2.84 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses
Dimensions      :      5.91 in L x 3.39 in W x 3.56 in H
Dimension Standards      :      SAE J1176

Danfoss's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

  • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
  • New patent pending dura-seal technology to eliminate hose assembly cool down leakage
  • Class zero leakage SAE J1176 on approved hose styles
  • Danfoss's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
