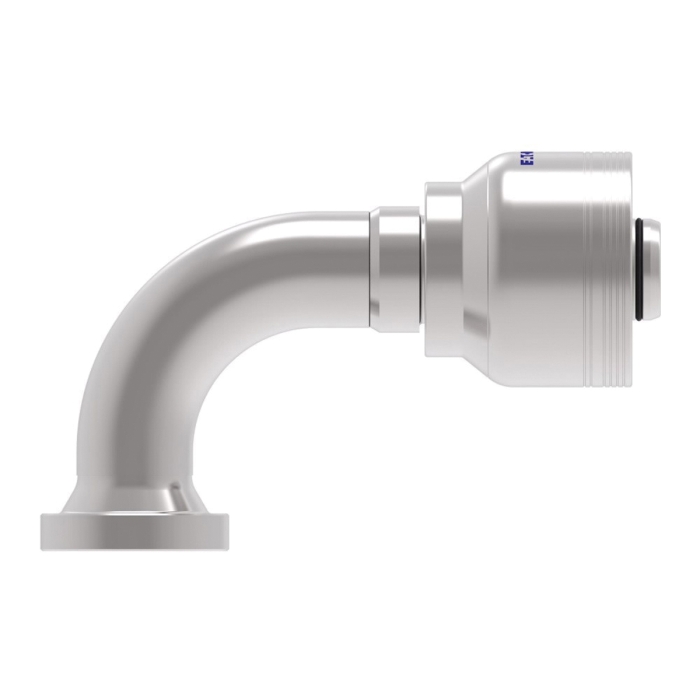

Aeroquip® 6-Spiral Crimp Hose 90 deg Elbow, 6S Series, Hose Connection: 1-1/4 in, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: SAE Code 62 Flange, Connection Size 2: 1-1/4 in, Cut-Off Factor: 4.19 in, Carbon Steel, Finish: Dura-Kote, For Use With: FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses, Dimensions: 6.4 in L x 2.61 in W x 3.5 in H, Dimension Standards: SAE J1176
| Fitting Type | : | 90 deg Elbow |
| Series | : | 6S |
| Hose Connection | : | 1-1/4 in |
| Connection Type 1 | : | Hose |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1-1/4 in |
| Hose Dash Size | : | 20 |
| Connection 2 | : | 1-1/4 in Code 62 |
| Connection Type 2 | : | SAE Code 62 Flange |
| Connection Size 2 | : | 1-1/4 in |
| Cut-Off Factor | : | 4.19 in |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| For Use With | : | FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses |
| Dimensions | : | 6.4 in L x 2.61 in W x 3.5 in H |
| Dimension Standards | : | SAE J1176 |
Danfoss's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.
- New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
- New patent pending dura-seal technology to eliminate hose assembly cool down leakage
- Class zero leakage SAE J1176 on approved hose styles
- Danfoss's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
