Gates® 24GSM-32FLH XBULK
Send Print
  1. pin-int

Gates® 24GSM-32FLH XBULK

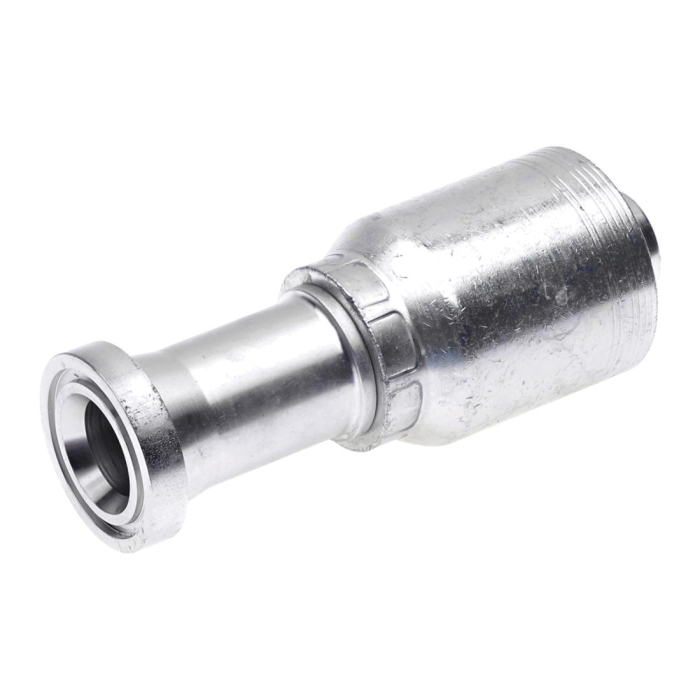

Gates® GlobalSpiral™ 24GSM-32FLH XBULK Coupling, 1-1/2 in x 1-1/2 in, Hose x Code 62 O-ring Heavy Flange

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 24GSH-32FLH
  • MPN: 24GSM-32FLH XBULK
  • UPC: 770075378877
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

1-1/2 in and 2 in No-skive coupling design for high-pressure spiral wire hose rated at 5000 and 6000 psi. No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system.

Gates® Coupling, 1-1/2 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, 1-1/2 in Code 62 O-Ring Heavy Flange Connection 2, Connection Type 2: Code 62 O-Ring Heavy Flange, Connection Size 2: 1-1/2 in, 1-1/2 in Nominal, 6000 psi, 4.13 in Cut-Off Factor, Plated/TuffCoat™, 7.87 in L, 250 deg F

Fitting Type      :      Coupling
Hose Connection      :      1-1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1-1/2 in
Connection 2      :      1-1/2 in Code 62 O-ring Heavy Flange
Connection Type 2      :      Code 62 O-ring Heavy Flange
Connection Size 2      :      1-1/2 in
Nominal Size      :      1-1/2 in
Pressure Rating      :      6000 psi
Cut-Off Factor      :      4.13 in
Finish      :      Plated/TuffCoat™
Dimensions      :      7.87 in L
Temperature Rating      :      250 deg F
  • Coated with TuffCoat® plating - more than 5X better corrosion-resistant than SAE ASTM B117 specification
  • Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
  • GlobalSpiral™ thread ends are able to handle working pressures up to 6000 psi
  • Flexible construction allows the belt to withstand billions of topside and backside bends in ABDS applications, resulting in long belt life
  • Designed for small diameter pulleys, backside idlers and for use with (or without) automatic tensioners
  • Unique form grinding of each individual belt assures precise dimensional control
  • Gates® recommends replacing serpentine belts at 90000 to prevent vehicle breakdowns or as advised by the vehicle manufacturer
  • Surpasses 1 M impulse cycles
  • Innovative, two-piece, No-skive design
