Gates® 734102065

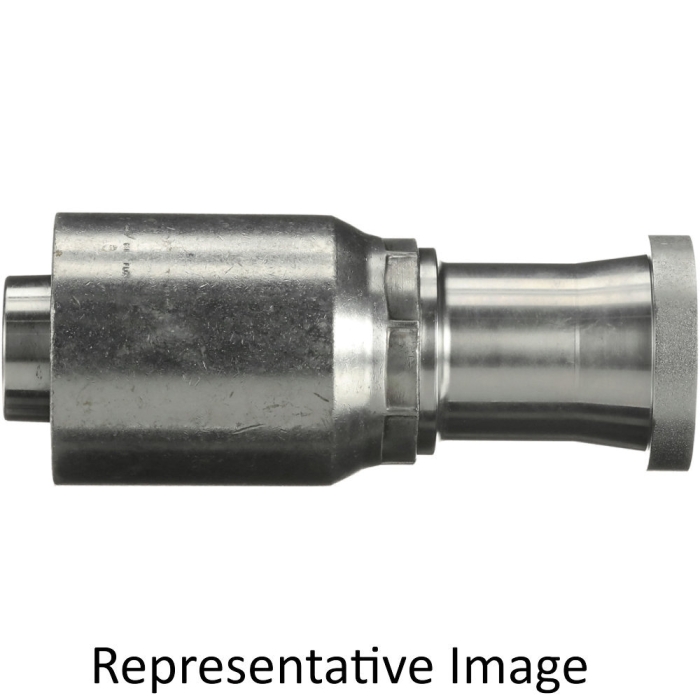

Gates® GlobalSpiral™ Max 734102065 Straight Hose Fitting, 1-1/2 in x 2 in, Hose x Caterpillar-Style O-ring Flange, Steel

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 24GSH-32FLC
  • MPN: 734102065
  • UPC: 770075404262
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

As mobile equipment platforms become more compact and powerful, they require larger diameter hydraulic hose with higher working pressures to meet performance demands. Large equipment used in industries like mining, oil and gas and construction are pushing current hose size and pressure limits. To meet this demand, Gates® introduces an industry first - the 32GSM No-skive coupling.

Gates® Straight Hose Fitting, 1-1/2 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, 24 Hose Dash, 2 in Caterpillar-Style O-Ring Flange Connection 2, Connection Type 2: Caterpillar-Style O-Ring Flange, Connection Size 2: 2 in, 2 in Nominal, 5000 psi, 4.13 in Cut-Off Factor, Steel, TuffCoat™, 7.87 in L, 250 deg F, 1 PK Packaging Quantity

Fitting Type      :      Hose Fitting
Hose Connection      :      1-1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1-1/2 in
Hose Dash Size      :      24
Connection 2      :      2 in Caterpillar-Style O-ring Flange
Connection Type 2      :      Caterpillar-Style O-ring Flange
Connection Size 2      :      2 in
Nominal Size      :      2 in
Pressure Rating      :      5000 psi
Cut-Off Factor      :      4.13 in
Material      :      Steel
Finish      :      TuffCoat™
Dimensions      :      7.87 in L
Temperature Rating      :      250 deg F
Packaging Quantity      :      1 PK
  • Greater power and capacity from existing equipment by replacing 2 in, 5000 psi hose assemblies
  • A flexible, easier-to-route hose assembly to replace 2 in rigid pipe on crowded equipment platforms
  • A stem machined from a single-piece of solid steel for greater strength and integrity
  • A No-skive design requiring no special equipment and skills, reducing the risk of blow-offs or leaks
