Aeroquip® 15611-F16-16ZF

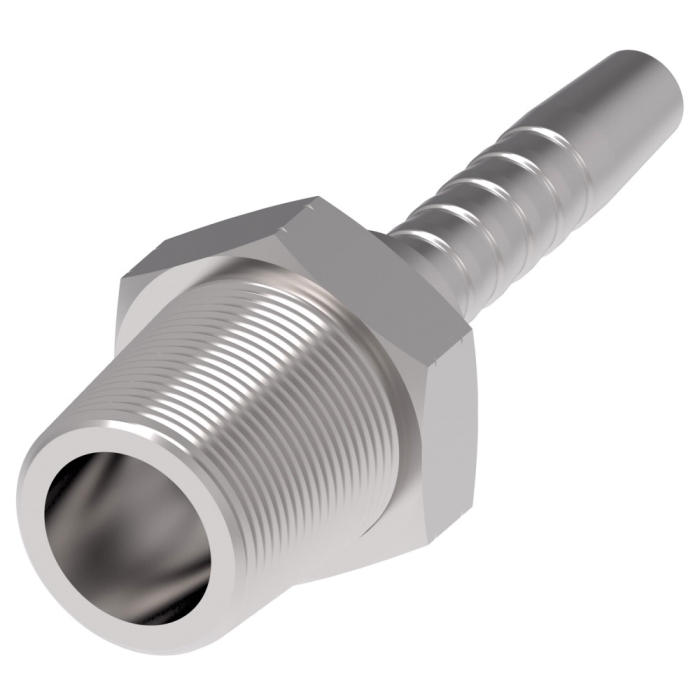

Aeroquip® 15611-F16-16ZF Zinc Clear Trivalent Chromate Carbon Steel MNPTF 2-Piece Rigid Crimp Straight Hose Nipple Assembly, 1 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 15611-F16-16ZF
  • MPN: 15611-F16-16ZF
  • UPC: 678146191649
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 2-Piece Rigid Crimp Straight Hose Nipple Assembly, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1.42 in, Cut-Off Factor: 1.83 in, Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 3.68 in L x 1.42 in W x 1.64 in H

Hose Connection      :      1 in in
Gender 2      :      Male
Connection Size 2      :      1 in
Nominal Size      :      1 in
Thread Size 2      :      1-11-1/2
Hex Size      :      1.42 in
Cut-Off Factor      :      1.83 in
Material      :      Carbon Steel
Finish      :      Zinc Clear Trivalent Chromate
For Use With      :      EC115, EC215, EC110, EC210, and EC118 Series Hoses
Fitting Type      :      Straight Nipple
Dimensions      :      3.68 in L x 1.42 in W x 1.64 in H
Connection Type 1      :      Hose
Connection Size 1      :      1 in
Hose Dash Size      :      16
Connection 2      :      1 in NPT
Connection Type 2      :      NPTF
  • Non-skive, two-piece crimp fitting
  • Meets industry specifications when used with the EC115, EC215 and EC118 standard hoses
  • Clear silver hexavalent chromium-free plating

Applications: Fittings are used in the high-pressure, high reliability hydraulics system of mobile, mining equipment, shipyard, primary metal, wind power and various industrial markets

Warranty: 5 Years Limited
