Aeroquip® 1GA12FRA12
Send Print
  1. pin-int

Aeroquip® 1GA12FRA12

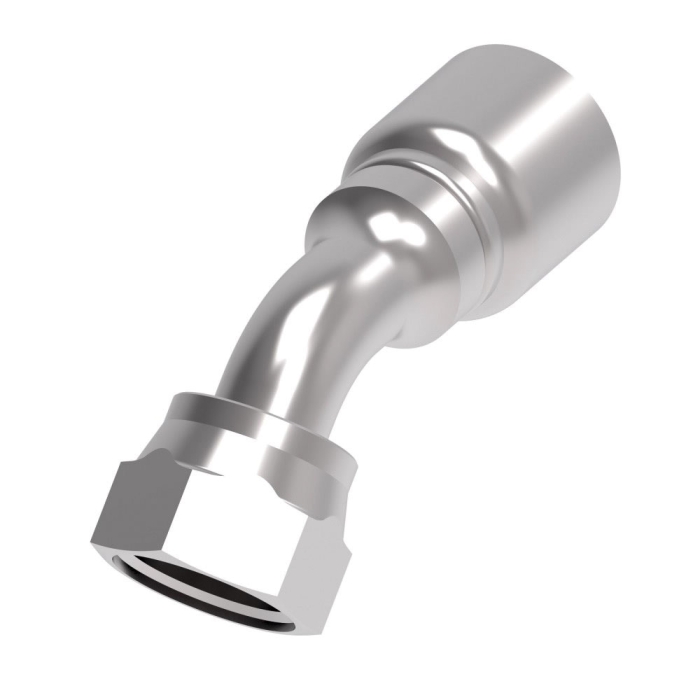

Aeroquip® 1G Series Dura-Kote Carbon Steel Female ORFS Swivel Crimp Hose 45 deg Elbow, 3/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1GA12FRA12
  • MPN: 1GA12FRA12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Hose 45 deg Elbow, 1G Series, Hose Connection: 3/4 in, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: ORFS Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1 3/16-12, Hex Size: 1-3/8 in, Cut-Off Factor: 2.38 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2583, 2661, FC318, FC466, FC498, FC598, FC619, and FC699 Series Hoses, Dimensions: 4.81 in L x 1.59 in W x 2.49 in H

Hose Connection      :      3/4 in
Gender 2      :      Female
Connection Size 2      :      3/4 in
Nominal Size      :      3/4 in
Thread Size 2      :      1 3/16-12
Hex Size      :      1-3/8 in
Cut-Off Factor      :      2.38 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2583, 2661, FC318, FC466, FC498, FC598, FC619, and FC699 Series Hoses
Fitting Type      :      45 deg Elbow
Dimensions      :      4.81 in L x 1.59 in W x 2.49 in H
Series      :      1G
Connection Type 1      :      Hose
Connection Size 1      :      3/4 in
Hose Dash Size      :      12
Connection 2      :      3/4 in ORFS Swivel
Connection Type 2      :      ORFS Swivel
