Aeroquip® 1GA8FRC8
Send Print
  1. pin-int

Aeroquip® 1GA8FRC8

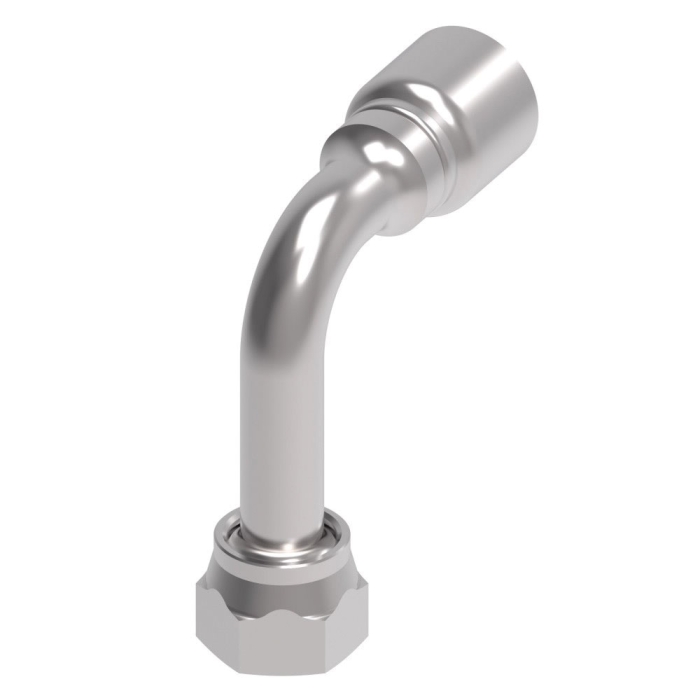

Aeroquip® 1G Series Dura-Kote Carbon Steel Female ORFS Swivel Crimp Hose 90 deg Long Drop Elbow, 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1GA8FRC8
  • MPN: 1GA8FRC8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Hose 90 deg Long Drop Elbow, 1G Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: ORFS Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 13/16-16, Hex Size: 0.9375 in, Cut-Off Factor: 1.7 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2583, 2661, FC318, FC466, FC498, FC598, FC619, and FC699 Series Hoses, Dimensions: 3.3 in L x 1.08 in W x 3.48 in H

Hose Connection      :      1/2 in
Gender 2      :      Female
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      13/16-16
Hex Size      :      0.9375 in
Cut-Off Factor      :      1.7 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2583, 2661, FC318, FC466, FC498, FC598, FC619, and FC699 Series Hoses
Fitting Type      :      90 deg Elbow
Dimensions      :      3.3 in L x 1.08 in W x 3.48 in H
Series      :      1G
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      1/2 in ORFS Swivel
Connection Type 2      :      ORFS Swivel
