Aeroquip® 1GA16FJB16

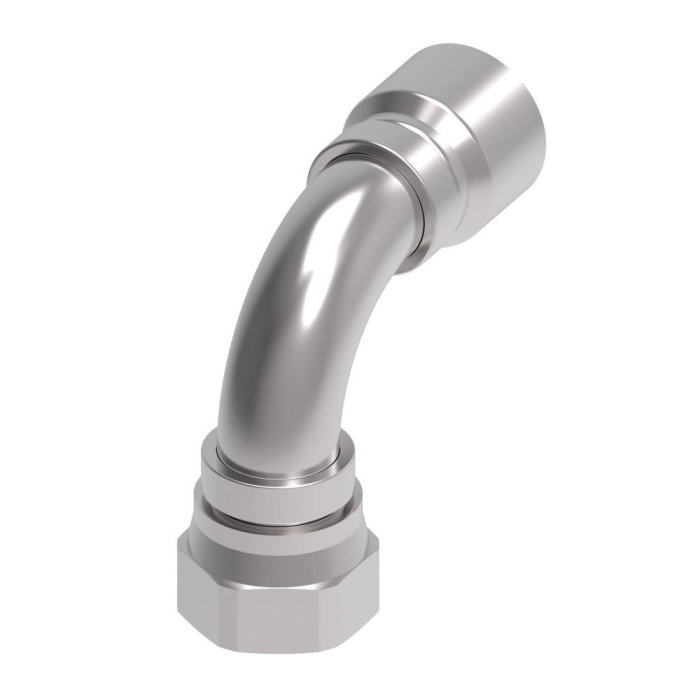

Aeroquip® 1G Series Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel Crimp Hose 90 deg Elbow, 1 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1GA16FJB16
  • MPN: 1GA16FJB16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Hose 90 deg Elbow, 1G Series, Hose Connection: 1 in, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1-1/2 in, Cut-Off Factor: 2.2 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2583, 2661, FC318, FC466, FC498, FC598, FC619, and FC699 Series Hoses, Dimensions: 4.3 in L x 1.5 in W x 3.83 in H

Hose Connection      :      1 in
Gender 2      :      Female
Connection Size 2      :      1 in
Nominal Size      :      1 in
Thread Size 2      :      1-5/16-12
Hex Size      :      1-1/2 in
Cut-Off Factor      :      2.2 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2583, 2661, FC318, FC466, FC498, FC598, FC619, and FC699 Series Hoses
Fitting Type      :      90 deg Elbow
Dimensions      :      4.3 in L x 1.5 in W x 3.83 in H
Series      :      1G
Connection Type 1      :      Hose
Connection Size 1      :      1 in
Hose Dash Size      :      16
Connection 2      :      1 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
