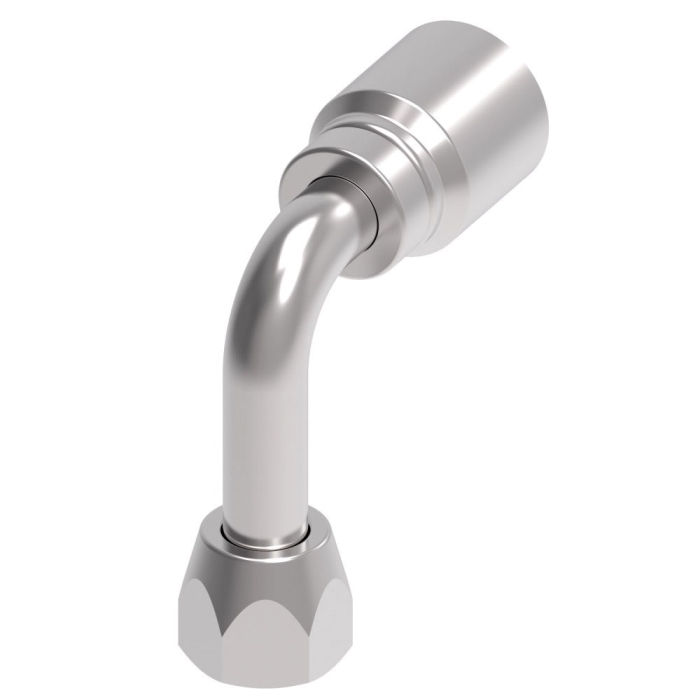

Aeroquip® Crimp Hose 90 deg Long Drop Elbow, 1G Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 7/8 in, Cut-Off Factor: 1.54 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2583, 2661, FC318, FC466, FC498, FC598, FC619, and FC699 Series Hoses, Dimensions: 3.14 in L x 1.08 in W x 3.44 in H
| Hose Connection | : | 1/2 in |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/2 in |
| Nominal Size | : | 1/2 in |
| Thread Size 2 | : | 3/4-16 |
| Hex Size | : | 7/8 in |
| Cut-Off Factor | : | 1.54 in |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| For Use With | : | 2583, 2661, FC318, FC466, FC498, FC598, FC619, and FC699 Series Hoses |
| Fitting Type | : | 90 deg Elbow |
| Dimensions | : | 3.14 in L x 1.08 in W x 3.44 in H |
| Series | : | 1G |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 1/2 in |
| Hose Dash Size | : | 08 |
| Connection 2 | : | 1/2 in JIC Swivel |
| Connection Type 2 | : | SAE 37 deg JIC Swivel |
Catalog/Catalog Cut Sheet
