Aeroquip® 1GA20FJ20 AER 1GA20FJ20 | Tipco Technologies
Aeroquip® 1GA20FJ20
Send Print
  1. pin-int

Aeroquip® 1GA20FJ20

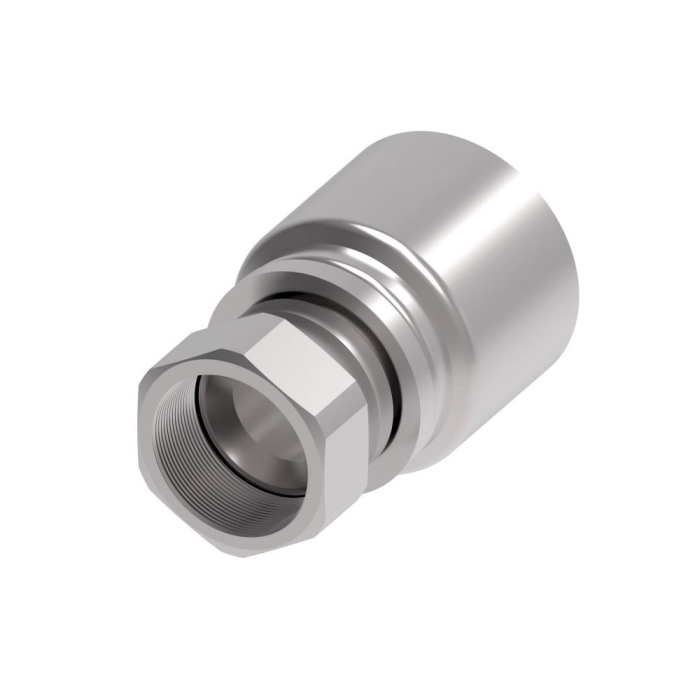

Aeroquip® 1G Series Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel Crimp Straight Hose Fitting, 1-1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1GA20FJ20
  • MPN: 1GA20FJ20
  • UPC: 678146132871
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Straight Hose Fitting, 1G Series, Hose Connection: 1-1/4 in, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1-1/4 in, Nominal Size: 1-1/4 in, Thread Size 2: 1-5/8-12, Hex Size: 2 in, Cut-Off Factor: 1.88 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2583, 2661, FC318, FC466, FC498, FC598, FC619, and FC699 Series Hoses, Dimensions: 3.61 in L x 2 in W x 2 in H

Hose Connection      :      1-1/4 in
Gender 2      :      Female
Connection Size 2      :      1-1/4 in
Nominal Size      :      1-1/4 in
Thread Size 2      :      1-5/8-12
Hex Size      :      2 in
Cut-Off Factor      :      1.88 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2583, 2661, FC318, FC466, FC498, FC598, FC619, and FC699 Series Hoses
Fitting Type      :      Straight Hose Fitting
Dimensions      :      3.61 in L x 2 in W x 2 in H
Series      :      1G
Connection Type 1      :      Hose
Connection Size 1      :      1-1/4 in
Hose Dash Size      :      20
Connection 2      :      1-1/4 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
