Aeroquip® 1SA24FR24

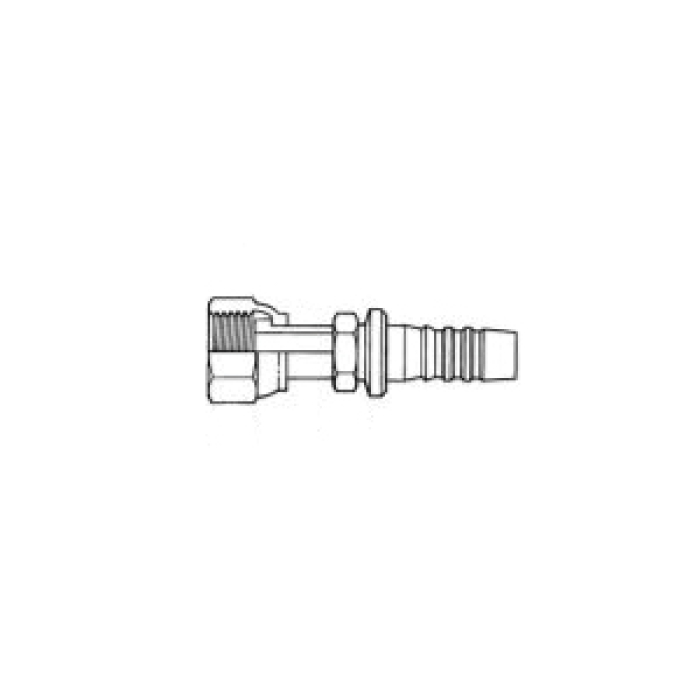

Aeroquip® 1SA24FR24 Carbon Steel Female ORFS Swivel Crimp Straight Hose Fitting, 1-1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1SA24FR24
  • MPN: 1SA24FR24
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Straight Hose Fitting, Hose Connection: 1-1/2 in, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: ORFS Swivel, Gender 2: Female, Connection Size 2: 1-1/2 in, Nominal Size: 1-1/2 in, Thread Size 2: 2-12, Hex Size: 2-1/4 x 2 in, Carbon Steel, For Use With: 2661 (-12 thru -20), FC619 (-12 thru -20) Clamps, 2681, FC310, FC510, FC639, FC839B (-4 thru -8), GH194 (-4 thru -20), GH663, and GH681 Sockets, Dimensions: 4.02 in L

Hose Connection      :      1-1/2 in
Gender 2      :      Female
Connection Size 2      :      1-1/2 in
Nominal Size      :      1-1/2 in
Thread Size 2      :      2-12
Hex Size      :      2-1/4 x 2 in
Material      :      Carbon Steel
For Use With      :      2661 (-12 thru -20), FC619 (-12 thru -20) Clamps, 2681, FC310, FC510, FC639, FC839B (-4 thru -8), GH194 (-4 thru -20), GH663, and GH681 Sockets
Fitting Type      :      Straight Hose Fitting
Dimensions      :      4.02 in L
Connection Type 1      :      Hose
Connection Size 1      :      1-1/2 in
Hose Dash Size      :      24
Connection 2      :      1-1/2 in ORFS Swivel
Connection Type 2      :      ORFS Swivel
