Aeroquip® 1SA32FJ32
Send Print
  1. pin-int

Aeroquip® 1SA32FJ32

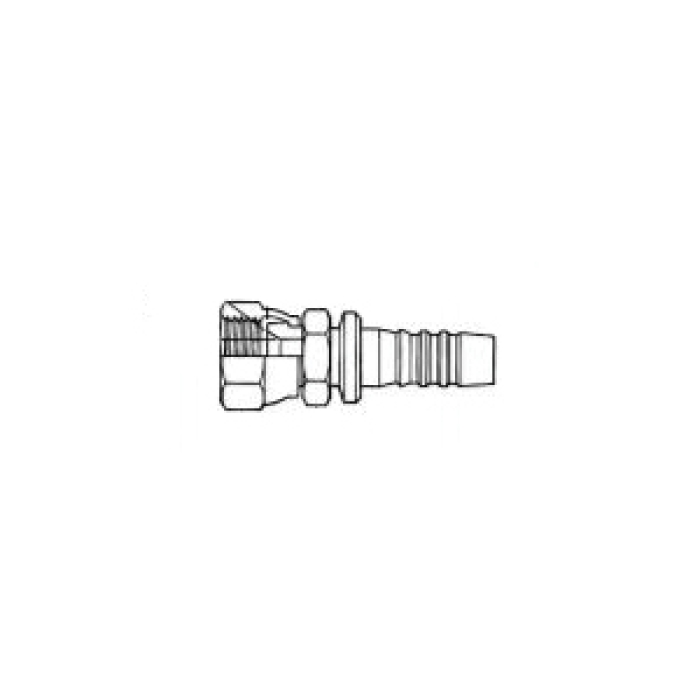

Aeroquip® 1SA32FJ32 Zinc-Plated Carbon Steel Female SAE 37 deg JIC Swivel Crimp Straight Hose Fitting, 2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1SA32FJ32
  • MPN: 1SA32FJ32
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Straight Hose Fitting, Hose Connection: 2 in, Connection Type 1: Hose, Connection Size 1: 2 in, Hose Dash Size: 32, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 2 in, Nominal Size: 2 in, Thread Size 2: 2-1/2-12, Hex Size: 2-7/8 in, Cut-Off Factor: 2.39 in, Carbon Steel, Finish: Zinc-Plated, For Use With: 2661 (-12 thru -20), FC619 (-12 thru -20) Clamps, 2681, FC310, FC510, FC639, FC839B (-4 thru -8), GH194 (-4 thru -20), GH663, and GH681 Sockets, Dimensions: 4.34 in L

Hose Connection      :      2 in
Gender 2      :      Female
Connection Size 2      :      2 in
Nominal Size      :      2 in
Thread Size 2      :      2-1/2-12
Hex Size      :      2-7/8 in
Cut-Off Factor      :      2.39 in
Material      :      Carbon Steel
Finish      :      Zinc-Plated
For Use With      :      2661 (-12 thru -20), FC619 (-12 thru -20) Clamps, 2681, FC310, FC510, FC639, FC839B (-4 thru -8), GH194 (-4 thru -20), GH663, and GH681 Sockets
Fitting Type      :      Straight Hose Fitting
Dimensions      :      4.34 in L
Connection Type 1      :      Hose
Connection Size 1      :      2 in
Hose Dash Size      :      32
Connection 2      :      2 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
