Aeroquip® 26711-08-08ZF

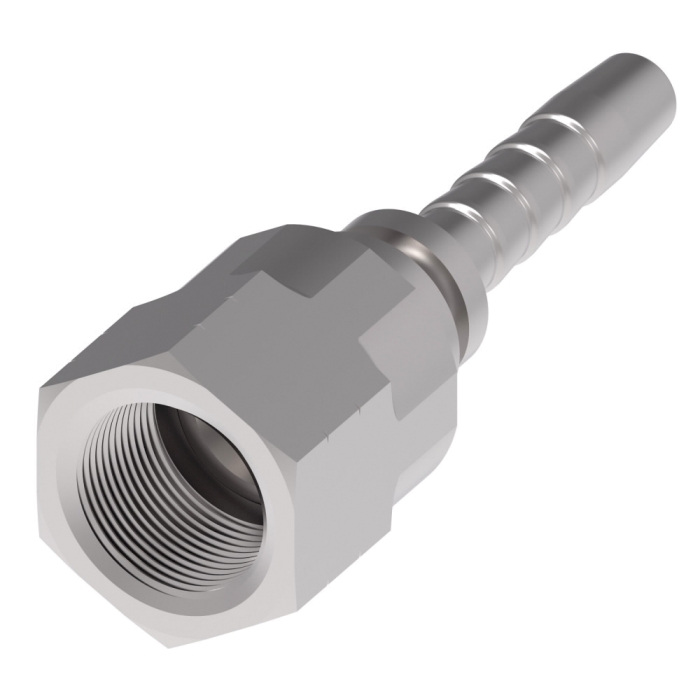

Aeroquip® 26711-08-08ZF Zinc-Plated Carbon Steel Female 37 deg JIC Swivel 2-Piece Crimp Straight Hose Fitting, 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 26711-08-08ZF
  • MPN: 26711-08-08ZF
  • UPC: 678146192417
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 2-Piece Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 0.87 in, Cut-Off Factor: 0.73 in, Carbon Steel, Finish: Zinc-Plated, For Use With: EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 1.97 in L x 0.866 in W x 1 in H

Hose Connection      :      1/2 in
Gender 2      :      Female
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      3/4-16
Hex Size      :      0.87 in
Cut-Off Factor      :      0.73 in
Material      :      Carbon Steel
Finish      :      Zinc-Plated
For Use With      :      EC115, EC215, EC110, EC210, and EC118 Series Hoses
Fitting Type      :      Straight Hose Fitting
Dimensions      :      1.97 in L x 0.866 in W x 1 in H
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      1/2 in JIC Swivel
Connection Type 2      :      37 deg JIC Swivel

Warranty: 5 Years Limited
