Aeroquip® 26741-04-04ZF

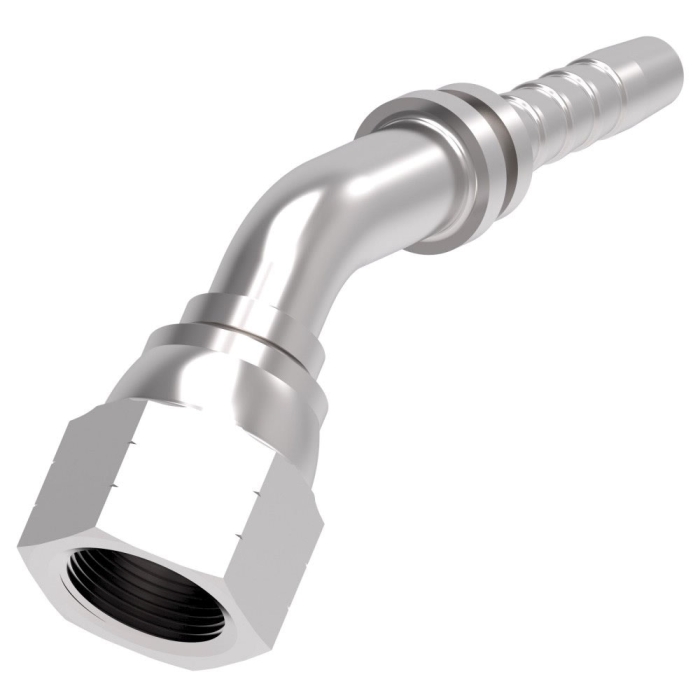

Aeroquip® 26741-04-04ZF Zinc-Plated Carbon Steel Female 37 deg JIC Swivel Crimp Hose 45 deg Elbow, 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 26741-04-04ZF
  • MPN: 26741-04-04ZF
  • UPC: 678146192592
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Hose 45 deg Elbow, Hose Connection: 1/4 in, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 0.551 in, Carbon Steel, For Use With: EC115, EC215, EC110, EC210, and EC118 Series Hoses

Hose Connection      :      1/4 in
Gender 2      :      Female
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Thread Size 2      :      7/16-20
Hex Size      :      0.551 in
Material      :      Carbon Steel
For Use With      :      EC115, EC215, EC110, EC210, and EC118 Series Hoses
Fitting Type      :      45 deg Elbow
Connection Type 1      :      Hose
Connection Size 1      :      1/4 in
Hose Dash Size      :      04
Connection 2      :      1/4 in JIC Swivel
Connection Type 2      :      37 deg JIC Swivel
