Aeroquip® FBM4131
Send Print
  1. pin-int

Aeroquip® FBM4131

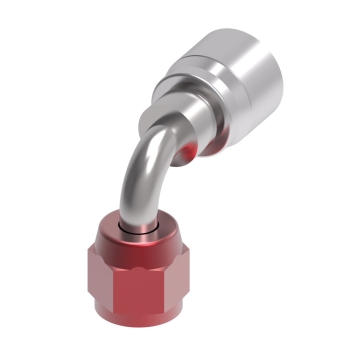

Aeroquip® FBM4131 Anodized Aluminum/Carbon Steel Female SAE 37 deg JIC Crimp Hose 90 deg Elbow, 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FBM4131
  • MPN: FBM4131
  • UPC: 678146118714
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Hose 90 deg Elbow, Hose Connection: 1/4 in, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 37 deg JIC, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 0.5625 in, Cut-Off Factor: 0.78 in, Aluminum/Carbon Steel, Finish: Anodized, For Use With: FBU Series Hoses, Dimensions: 1.56 in L x 0.65 in W x 1.42 in H

Hose Connection      :      1/4 in
Gender 2      :      Female
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Thread Size 2      :      7/16-20
Hex Size      :      0.5625 in
Cut-Off Factor      :      0.78 in
Material      :      Aluminum/Carbon Steel
Finish      :      Anodized
For Use With      :      FBU Series Hoses
Fitting Type      :      90 deg Elbow
Dimensions      :      1.56 in L x 0.65 in W x 1.42 in H
Connection Type 1      :      Hose
Connection Size 1      :      1/4 in
Hose Dash Size      :      04
Connection 2      :      1/4 in JIC
Connection Type 2      :      SAE 37 deg JIC
