Aeroquip® FC4098-0404S
Send Print
  1. pin-int

Aeroquip® FC4098-0404S

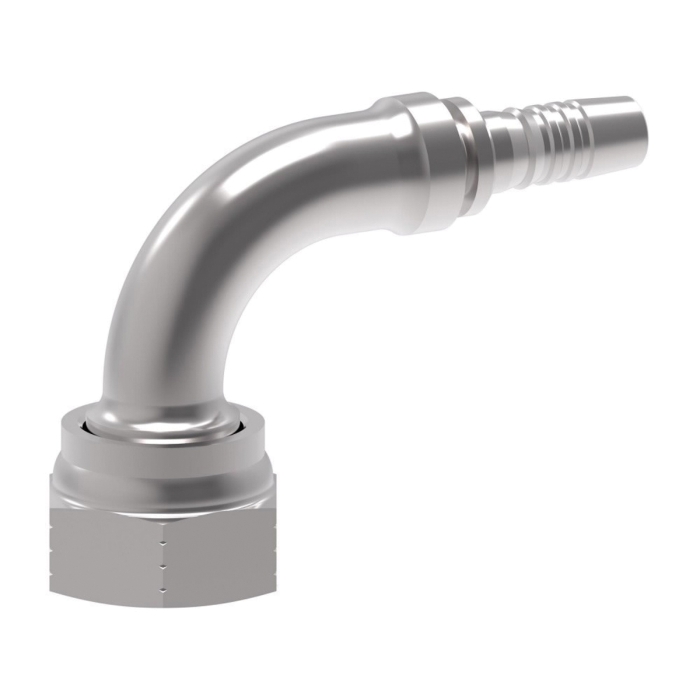

Aeroquip® FC4098 Dura-Kote Carbon Steel Female SAE 45 deg/37 deg JIC Swivel 90 deg Elbow Nipple Assembly, 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC4098-0404S
  • MPN: FC4098-0404S
  • UPC: 678146144843
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 90 deg Elbow Nipple Assembly, FC4098 Series, Hose Connection: 1/4 in, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Hex Size: 0.5625 in, 4500 psi, Cut-Off Factor: 0.69 in, Carbon Steel, Finish: Dura-Kote, For Use With: FC807, FC465, 2807, and FC645 Hoses, Dimensions: 1.56 in L x 0.562 in W x 1.2 in H, Dimension Standards: SAE J514

Hose Connection      :      1/4 in
Gender 2      :      Female
Connection Size 2      :      1/4 in
Hex Size      :      0.5625 in
Pressure Rating      :      4500 psi
Cut-Off Factor      :      0.69 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      FC807, FC465, 2807, and FC645 Hoses
Fitting Type      :      Nipple
Dimensions      :      1.56 in L x 0.562 in W x 1.2 in H
Dimension Standards      :      SAE J514
Series      :      FC4098
Connection Type 1      :      Hose
Connection Size 1      :      1/4 in
Hose Dash Size      :      04
Connection 2      :      1/4 in JIC Swivel
Connection Type 2      :      SAE 45 deg/37 deg JIC Swivel
