Aeroquip® FC4098-0505S

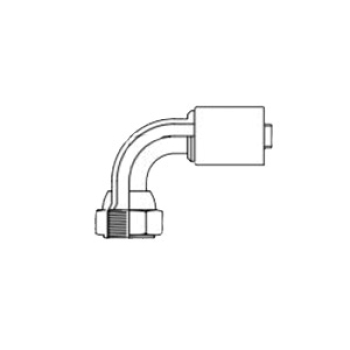

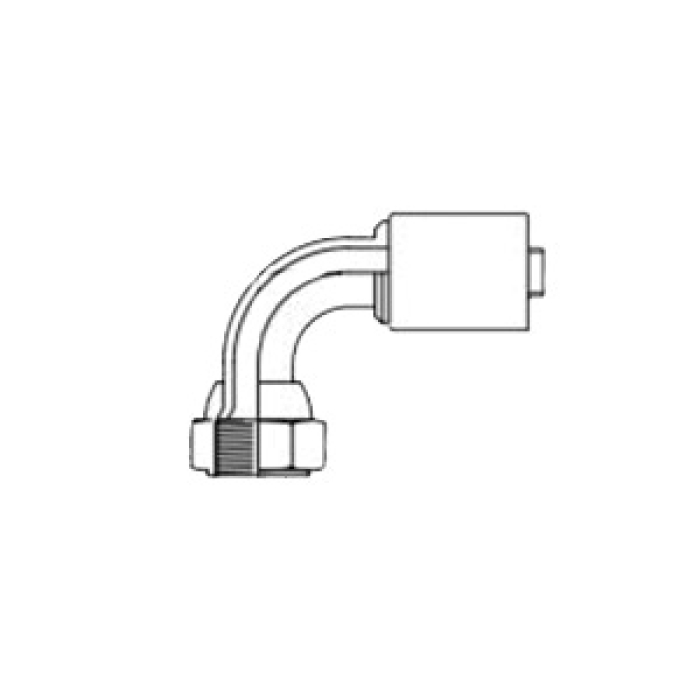

Aeroquip® FC4098 Dura-Kote Carbon Steel Female SAE 45 deg/37 deg JIC Swivel 90 deg Elbow Nipple Assembly, 5/16 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC4098-0505S
  • MPN: FC4098-0505S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 90 deg Elbow Nipple Assembly, FC4098 Series, Hose Connection: 5/16 in, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 05, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 5/16 in, Carbon Steel, Finish: Dura-Kote, For Use With: FC807, FC465, 2807, and FC645 Hoses, Dimension Standards: SAE J514

Hose Connection      :      5/16 in
Gender 2      :      Female
Connection Size 2      :      5/16 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      FC807, FC465, 2807, and FC645 Hoses
Fitting Type      :      Nipple
Dimension Standards      :      SAE J514
Series      :      FC4098
Connection Type 1      :      Hose
Connection Size 1      :      5/16 in
Hose Dash Size      :      05
Connection 2      :      5/16 in JIC Swivel
Connection Type 2      :      SAE 45 deg/37 deg JIC Swivel
