Aeroquip® FC5810-0302S
Send Print
  1. pin-int

Aeroquip® FC5810-0302S

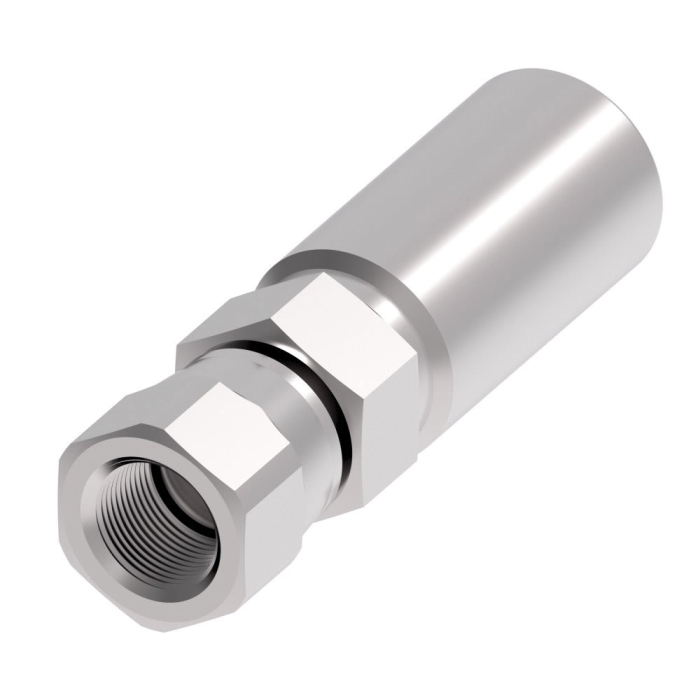

Aeroquip® FC5810 Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel 100R7/R8 Crimp Straight Hose Fitting, 1/8 x 3/16 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC5810-0302S
  • MPN: FC5810-0302S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R7/R8 Crimp Straight Hose Fitting, FC5810 Series, Hose Connection: 1/8 in, Connection Type 1: Hose, Connection Size 1: 1/8 in, Hose Dash Size: 02, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/16 in, Nominal Size: 3/16 in, Thread Size 2: 3/8-24, Hex Size: 0.5625 in, Cut-Off Factor: 1.04 in, Carbon Steel, Finish: Dura-Kote, For Use With: 3130, 37AL, 3740, and FC370 Series Hoses, Dimensions: 1.73 in L x 0.56 in W x 0.649 in H

Hose Connection      :      1/8 in
Gender 2      :      Female
Connection Size 2      :      3/16 in
Nominal Size      :      3/16 in
Thread Size 2      :      3/8-24
Hex Size      :      0.5625 in
Cut-Off Factor      :      1.04 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      3130, 37AL, 3740, and FC370 Series Hoses
Fitting Type      :      Straight Hose Fitting
Dimensions      :      1.73 in L x 0.56 in W x 0.649 in H
Series      :      FC5810
Connection Type 1      :      Hose
Connection Size 1      :      1/8 in
Hose Dash Size      :      02
Connection 2      :      3/16 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel

Applications: Mining, metals and minerals, mobile machinery and equipment
