Aeroquip® FC6216-1212S AER FC6216-1212S | Tipco Technologies
Aeroquip® FC6216-1212S
Send Print
  1. pin-int

Aeroquip® FC6216-1212S

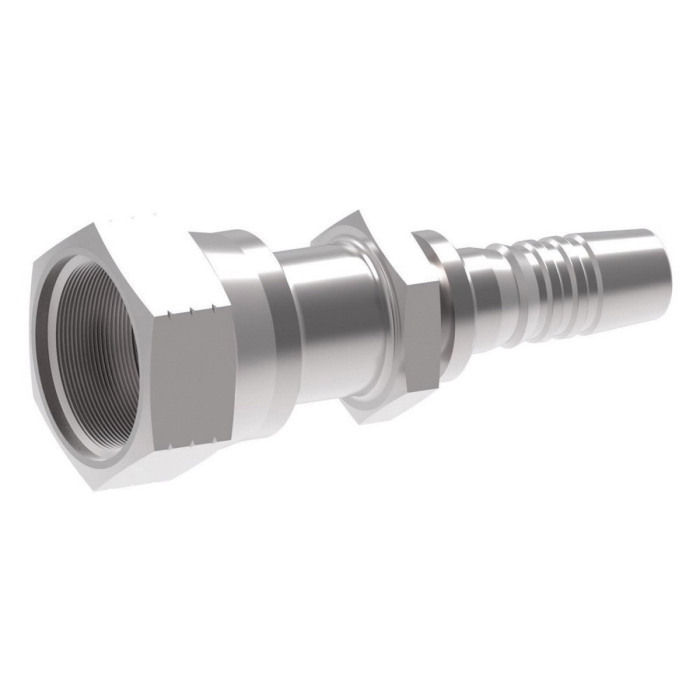

Aeroquip® FC6216 Dura-Kote Carbon Steel Female SAE 45 deg Swivel Crimp Straight Hose Nipple Assembly, 3/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC6216-1212S
  • MPN: FC6216-1212S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Straight Hose Nipple Assembly, FC6216 Series, Hose Connection: 3/4 in, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: SAE 45 deg Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 11/16-14, Hex Size: 1-1/4 x 1 in, Cut-Off Factor: 1.41 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2807, FC186, FC465, FC645, and FC807 Hoses, Dimensions: 2.29 in L x 1.25 in W x 1.44 in H

Hose Connection      :      3/4 in
Gender 2      :      Female
Connection Size 2      :      3/4 in
Nominal Size      :      3/4 in
Thread Size 2      :      11/16-14
Hex Size      :      1-1/4 x 1 in
Cut-Off Factor      :      1.41 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2807, FC186, FC465, FC645, and FC807 Hoses
Fitting Type      :      Straight Nipple
Dimensions      :      2.29 in L x 1.25 in W x 1.44 in H
Series      :      FC6216
Connection Type 1      :      Hose
Connection Size 1      :      3/4 in
Hose Dash Size      :      12
Connection 2      :      3/4 in SAE Swivel
Connection Type 2      :      SAE 45 deg Swivel
