Aeroquip® FC6217-0606S

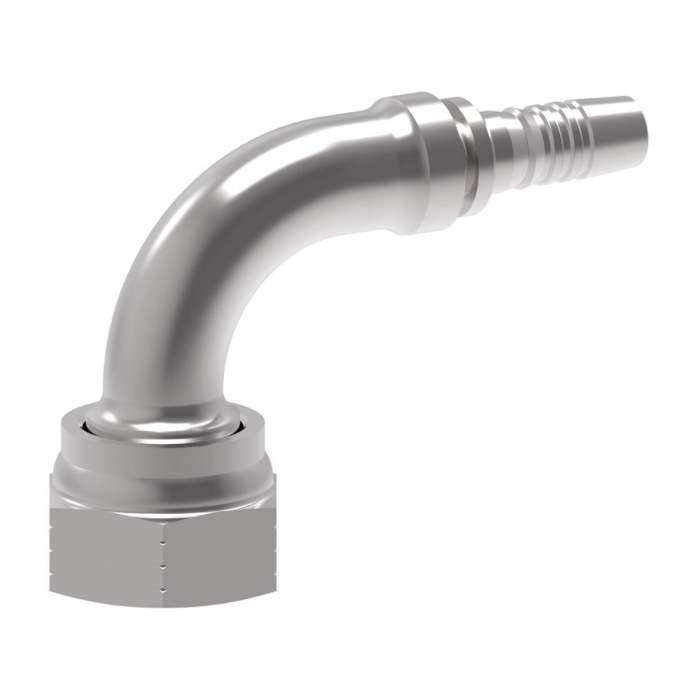

Aeroquip® FC6217 Carbon Steel SAE 45 deg/37 deg JIC Permanent Crimp 90 deg Nipple Assembly, 3/8 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC6217-0606S
  • MPN: FC6217-0606S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Permanent Crimp 90 deg Nipple Assembly, FC6217 Series, Hose Connection: 3/8 in, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE 45 deg/37 deg JIC, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 5/8-18, Hex Size: 3/4 in, Carbon Steel, For Use With: 2807, FC465, and S-TW Series PTFE Hoses

Hose Connection      :      3/8 in
Connection Size 2      :      3/8 in
Nominal Size      :      3/8 in
Thread Size 2      :      5/8-18
Hex Size      :      3/4 in
Material      :      Carbon Steel
For Use With      :      2807, FC465, and S-TW Series PTFE Hoses
Fitting Type      :      Nipple
Series      :      FC6217
Connection Type 1      :      Hose
Connection Size 1      :      3/8 in
Hose Dash Size      :      06
Connection 2      :      3/8 in JIC
Connection Type 2      :      SAE 45 deg/37 deg JIC
