Aeroquip® FC6220-0808S
Send Print
  1. pin-int

Aeroquip® FC6220-0808S

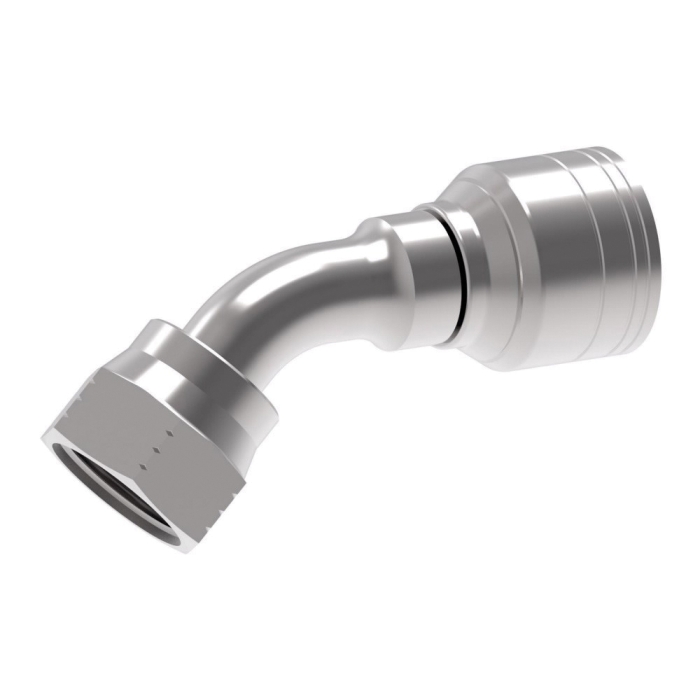

Aeroquip® FC6220 Carbon Steel SAE 45 deg/37 deg Swivel Permanent Crimp 45 deg Nipple Assembly, 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC6220-0808S
  • MPN: FC6220-0808S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Permanent Crimp 45 deg Nipple Assembly, FC6220 Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 45 deg/37 deg Swivel, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 7/8 in, Carbon Steel, For Use With: FC807, FC465, 2807, and FC645 Series PTFE Hoses, Dimensions: 2.16 in L

Hose Connection      :      1/2 in
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      3/4-16
Hex Size      :      7/8 in
Material      :      Carbon Steel
For Use With      :      FC807, FC465, 2807, and FC645 Series PTFE Hoses
Fitting Type      :      Nipple
Dimensions      :      2.16 in L
Series      :      FC6220
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      1/2 in SAE Swivel
Connection Type 2      :      SAE 45 deg/37 deg Swivel
