Aeroquip® FC7216-0404S
Send Print
  1. pin-int

Aeroquip® FC7216-0404S

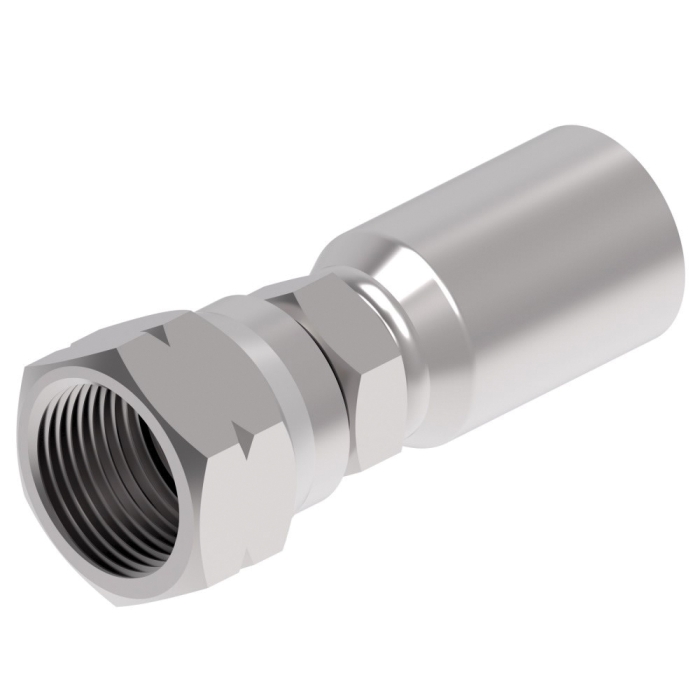

Aeroquip® FC7216 Dura-Kote Carbon Steel Female SAE 45 deg Swivel Crimp Straight Hose Fitting, 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC7216-0404S
  • MPN: FC7216-0404S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Straight Hose Fitting, FC7216 Series, Hose Connection: 1/4 in, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 45 deg Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 9/16 x 7/16 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2807, FC465, and S-TW Series PTFE Hoses, Dimensions: 1.55 in L

Hose Connection      :      1/4 in
Gender 2      :      Female
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Thread Size 2      :      7/16-20
Hex Size      :      9/16 x 7/16 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2807, FC465, and S-TW Series PTFE Hoses
Fitting Type      :      Straight Hose Fitting
Dimensions      :      1.55 in L
Series      :      FC7216
Connection Type 1      :      Hose
Connection Size 1      :      1/4 in
Hose Dash Size      :      04
Connection 2      :      1/4 in SAE Swivel
Connection Type 2      :      SAE 45 deg Swivel
