Aeroquip® FC8152-4040S

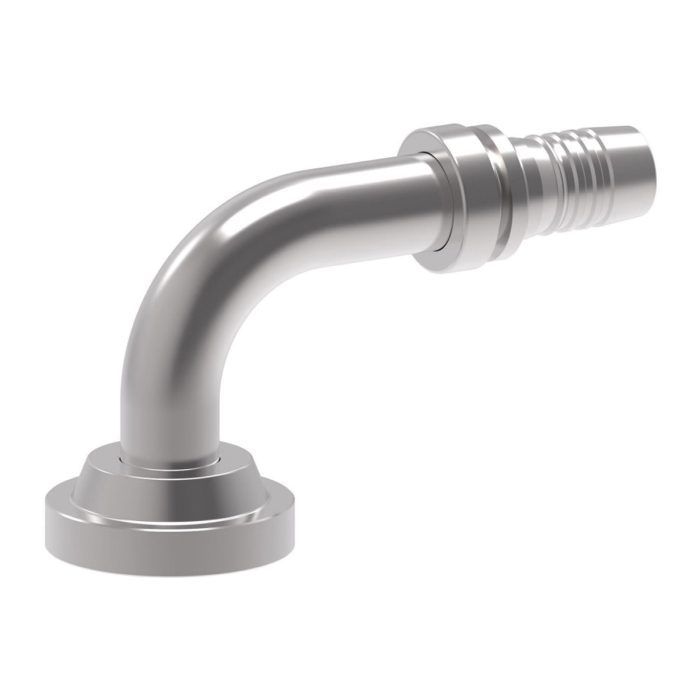

Aeroquip® FC8152 Dura-Kote Carbon Steel SAE Code 61 Flange Crimp Hose 90 deg Nipple, 2-1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC8152-4040S
  • MPN: FC8152-4040S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Hose 90 deg Nipple, FC8152 Series, Hose Connection: 2-1/2 in, Connection Type 1: Hose, Connection Size 1: 2-1/2 in, Hose Dash Size: 40, Connection Type 2: SAE Code 61 Flange, Connection Size 2: 2-1/2 in, Cut-Off Factor: 4.87 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2661 Series Hoses, Dimensions: 9.23 in L x 4 in W x 6.68 in H, Dimension Standards: SAE 100R2AT, -40 to 212 deg F

Hose Connection      :      2-1/2 in
Connection Size 2      :      2-1/2 in
Cut-Off Factor      :      4.87 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2661 Series Hoses
Fitting Type      :      Nipple
Dimensions      :      9.23 in L x 4 in W x 6.68 in H
Dimension Standards      :      SAE 100R2AT
Temperature Rating      :      -40 to 212 deg F
Series      :      FC8152
Connection Type 1      :      Hose
Connection Size 1      :      2-1/2 in
Hose Dash Size      :      40
Connection 2      :      2-1/2 in Code 61
Connection Type 2      :      SAE Code 61 Flange

Applications: Hydraulic system service with petroleum and water-based fluids and general industrial use
