Aeroquip® FC8779-0404S AER FC8779-0404S | Tipco Technologies
Aeroquip® FC8779-0404S
Send Print
  1. pin-int

Aeroquip® FC8779-0404S

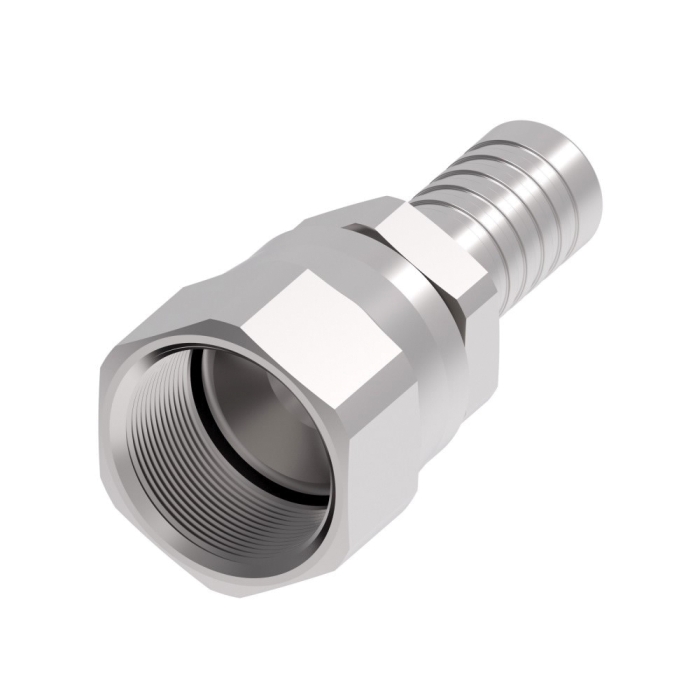

Aeroquip® FC8779 Dura-Kote Carbon Steel Crimp Straight Hose Nipple Assembly, 1/4 in Hose x 1/4 in Female SAE 37 deg JIC Swivel

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC8779-0404S
  • MPN: FC8779-0404S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Straight Hose Nipple Assembly, FC8779 Series, Hose Connection: 1/4 in, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 0.5625 x 0.4375 in, 4500 psi, Carbon Steel, Finish: Dura-Kote, For Use With: FC807, FC465, 2807, and FC645 Hoses, Dimensions: 1.55 in L x 0.5625 in W x 0.64 in H

Hose Connection      :      1/4 in
Gender 2      :      Female
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Thread Size 2      :      7/16-20
Hex Size      :      0.5625 x 0.4375 in
Pressure Rating      :      4500 psi
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      FC807, FC465, 2807, and FC645 Hoses
Fitting Type      :      Straight Nipple
Dimensions      :      1.55 in L x 0.5625 in W x 0.64 in H
Series      :      FC8779
Connection Type 1      :      Hose
Connection Size 1      :      1/4 in
Hose Dash Size      :      04
Connection 2      :      1/4 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
