Aeroquip® FC8779-0505S AER FC8779-0505S | Tipco Technologies
Aeroquip® FC8779-0505S
Send Print
  1. pin-int

Aeroquip® FC8779-0505S

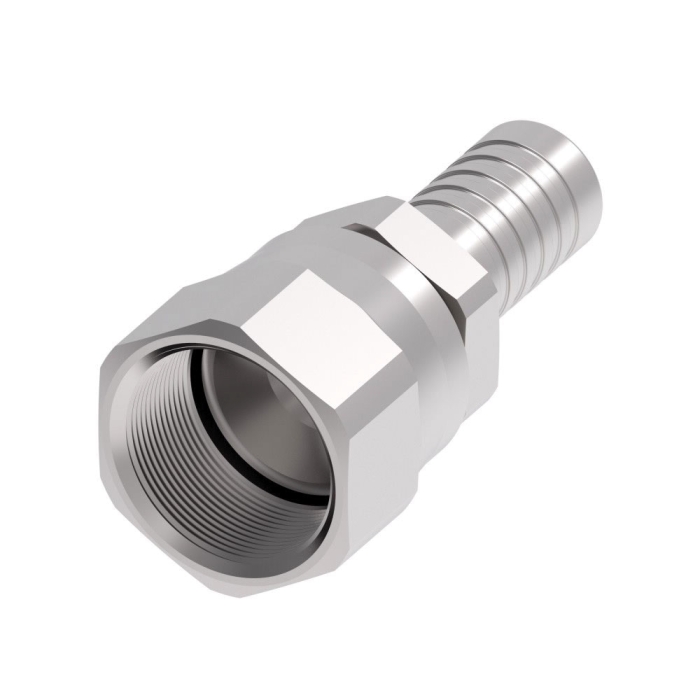

Aeroquip® FC8779 Dura-Kote Carbon Steel Crimp Straight Hose Nipple Assembly, 5/16 in Hose x 5/16 in Female SAE 37 deg JIC Swivel

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC8779-0505S
  • MPN: FC8779-0505S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Straight Hose Nipple Assembly, FC8779 Series, Hose Connection: 5/16 in, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 05, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 5/16 in, Nominal Size: 5/16 in, Thread Size 2: 1-1/2-20, Hex Size: 5/8 x 1/2 in, Carbon Steel, Finish: Dura-Kote, For Use With: FC807, FC465, 2807, and FC645 Hoses, Dimensions: 1.5 in L x 0.625 in W x 0.72 in H

Hose Connection      :      5/16 in
Gender 2      :      Female
Connection Size 2      :      5/16 in
Nominal Size      :      5/16 in
Thread Size 2      :      1-1/2-20
Hex Size      :      5/8 x 1/2 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      FC807, FC465, 2807, and FC645 Hoses
Fitting Type      :      Straight Nipple
Dimensions      :      1.5 in L x 0.625 in W x 0.72 in H
Series      :      FC8779
Connection Type 1      :      Hose
Connection Size 1      :      5/16 in
Hose Dash Size      :      05
Connection 2      :      5/16 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
