Aeroquip® FC9153-4040S
Send Print
  1. pin-int

Aeroquip® FC9153-4040S

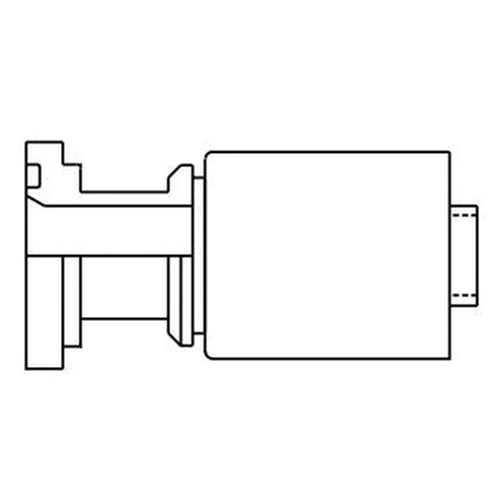

Aeroquip® FC9153 Zinc-Plated Carbon Steel SAE Code 61 Split Flange Permanent Straight Suction Hose Fitting, 2-1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC9153-4040S
  • MPN: FC9153-4040S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Permanent Straight Suction Hose Fitting, FC9153 Series, Hose Connection: 2-1/2 in, Connection Type 1: Hose, Connection Size 1: 2-1/2 in, Hose Dash Size: 40, Connection Type 2: SAE Code 61 Flange, Connection Size 2: 2-1/2 in, Carbon Steel, Finish: Zinc-Plated, For Use With: 2661 and FC619 Hoses, Dimension Standards: SAE R4

Hose Connection      :      2-1/2 in
Connection Size 2      :      2-1/2 in
Material      :      Carbon Steel
Finish      :      Zinc-Plated
For Use With      :      2661 and FC619 Hoses
Fitting Type      :      Straight Hose Fitting
Dimension Standards      :      SAE R4
Series      :      FC9153
Connection Type 1      :      Hose
Connection Size 1      :      2-1/2 in
Hose Dash Size      :      40
Connection 2      :      2-1/2 in Code 61
Connection Type 2      :      SAE Code 61 Flange
