Aeroquip® FJ3244-0404S AER FJ3244-0404S | Tipco Technologies
Aeroquip® FJ3244-0404S
Send Print
  1. pin-int

Aeroquip® FJ3244-0404S

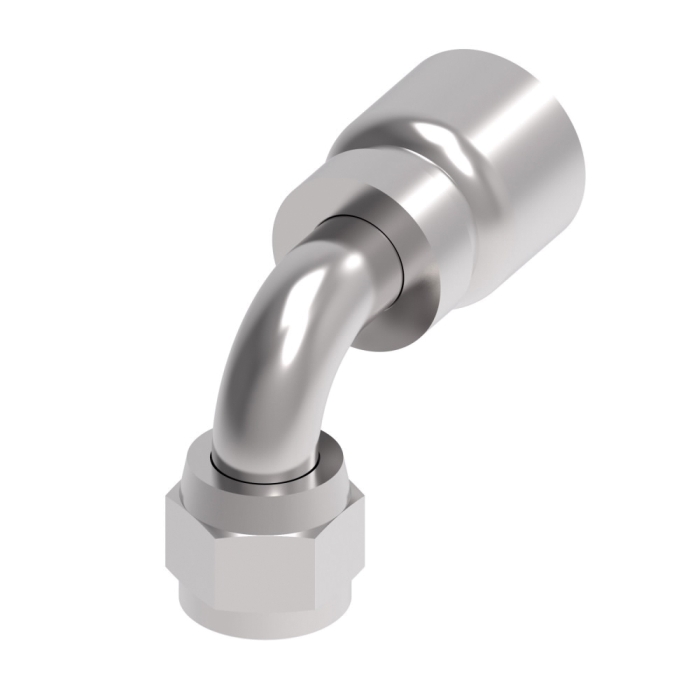

Aeroquip® FJ3244 Dura-Kote Carbon Steel Female SAE 45 deg/37 deg JIC Swivel 100R5 Crimp Hose 90 deg Elbow, 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FJ3244-0404S
  • MPN: FJ3244-0404S
  • UPC: 678146148070
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R5 Crimp Hose 90 deg Elbow, FJ3244 Series, Hose Connection: 1/4 in, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 0.5625 in, Cut-Off Factor: 0.83 in, Carbon Steel, Finish: Dura-Kote, For Use With: 1503, FC234, FC300, FC350, and FC355 Series Hoses, Dimensions: 1.89 in L x 0.67 in W x 1.34 in H

Hose Connection      :      1/4 in
Gender 2      :      Female
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Thread Size 2      :      7/16-20
Hex Size      :      0.5625 in
Cut-Off Factor      :      0.83 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      1503, FC234, FC300, FC350, and FC355 Series Hoses
Fitting Type      :      90 deg Elbow
Dimensions      :      1.89 in L x 0.67 in W x 1.34 in H
Series      :      FJ3244
Connection Type 1      :      Hose
Connection Size 1      :      1/4 in
Hose Dash Size      :      04
Connection 2      :      1/4 in JIC Swivel
Connection Type 2      :      SAE 45 deg/37 deg JIC Swivel
