Aeroquip® FJ3250-0608S
Send Print
  1. pin-int

Aeroquip® FJ3250-0608S

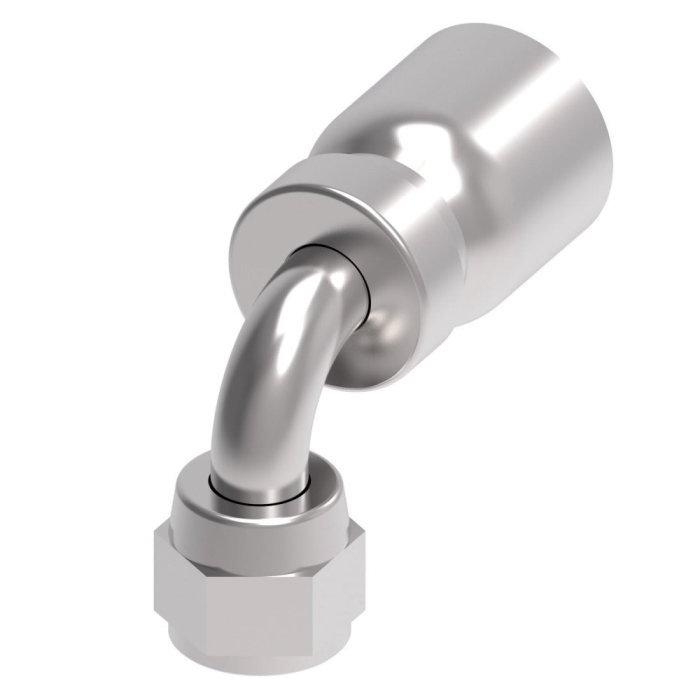

Aeroquip® FJ3250 Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel 100R5 Crimp Hose 90 deg Elbow, 1/2 x 3/8 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FJ3250-0608S
  • MPN: FJ3250-0608S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R5 Crimp Hose 90 deg Elbow, FJ3250 Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 0.6875 in, Cut-Off Factor: 1.05 in, Carbon Steel, Finish: Dura-Kote, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949 Series Hoses, Dimensions: 2.19 in L x 0.93 in W x 1.69 in H, -49 to 302 deg F

Hose Connection      :      1/2 in
Gender 2      :      Female
Connection Size 2      :      3/8 in
Nominal Size      :      3/8 in
Thread Size 2      :      9/16-18
Hex Size      :      0.6875 in
Cut-Off Factor      :      1.05 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949 Series Hoses
Fitting Type      :      90 deg Elbow
Dimensions      :      2.19 in L x 0.93 in W x 1.69 in H
Temperature Rating      :      -49 to 302 deg F
Series      :      FJ3250
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      3/8 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
