Gates® 4C14-4FJX45
Send Print
  1. pin-int

Gates® 4C14-4FJX45

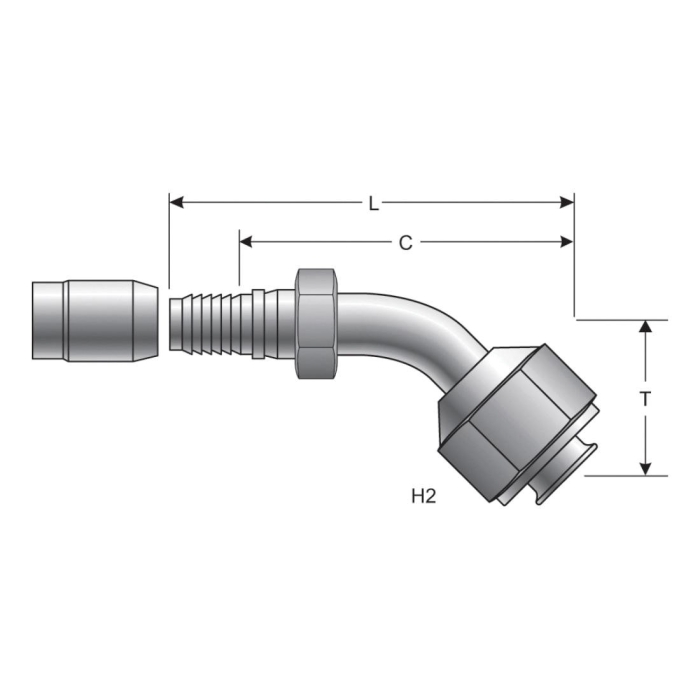

Gates® 4C14-4FJX45 45 deg Coupling, 3/16 in x 7/16 in, Hose x 37 deg JIC Flare Swivel, Steel

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 4C14-4FJX45
  • MPN: 4C14-4FJX45
  • UPC: 072053176353
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® 45 deg Coupling, Female Gender 2, Connection Size 2: 7/16 in, 7/16 in Nominal, 7/16-20 Thread Size 2, 9/16 in Hex, 1-1/4 in Cut-Off Factor, Steel, 1.69 in L, 3/16 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 3/16 in, 7/16 in 37 deg JIC Flare Swivel Connection 2, Connection Type 2: 37 deg JIC Flare Swivel

Fitting Type      :      45 deg Coupling
Gender 2      :      Female
Connection Size 2      :      7/16 in
Nominal Size      :      7/16 in
Thread Size 2      :      7/16-20
Hex Size      :      9/16 in
Cut-Off Factor      :      1-1/4 in
Material      :      Steel
Dimensions      :      1.69 in L
Hose Connection      :      3/16 in
Connection Type 1      :      Hose
Connection Size 1      :      3/16 in
Connection 2      :      7/16 in 37 deg JIC Flare Swivel
Connection Type 2      :      37 deg JIC Flare Swivel
  • Gates® SureLok™ couplings for NABT (nylon air brake tubing)
