Gates® 4C14-4MIX45
Send Print
  1. pin-int

Gates® 4C14-4MIX45

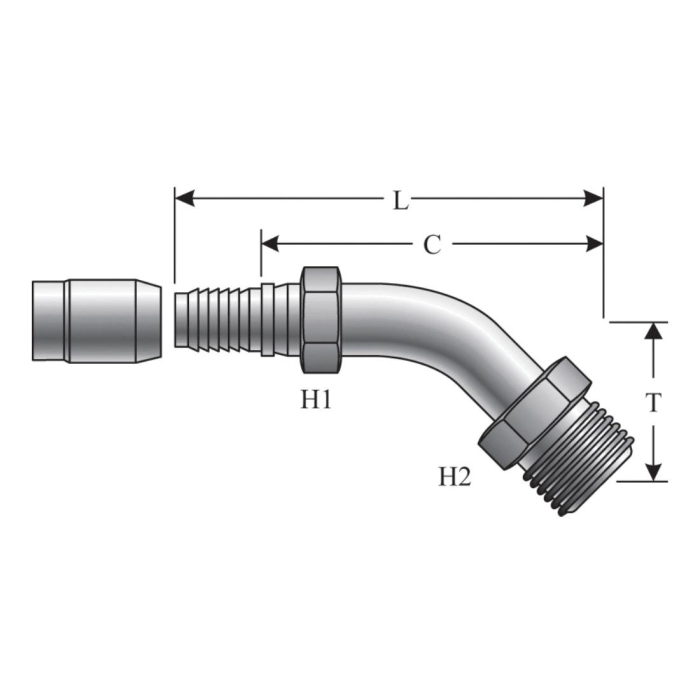

Gates® 4C14-4MIX45 45 deg Coupling, 3/16 in x 7/16 in, Hose x SAE Inverted Swivel, Steel

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 4C14-4MIX45
  • MPN: 4C14-4MIX45
  • UPC: 072053320145
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® 45 deg Coupling, Male Gender 2, Connection Size 2: 7/16 in, 7/16 in Nominal, 7/16-24 Thread Size 2, 7/16 in Hex, 1.53 in Cut-Off Factor, Steel, 1.99 in L, 3/16 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 3/16 in, 7/16 in SAE Inverted Swivel Connection 2, Connection Type 2: SAE Inverted Swivel

Fitting Type      :      45 deg Coupling
Gender 2      :      Male
Connection Size 2      :      7/16 in
Nominal Size      :      7/16 in
Thread Size 2      :      7/16-24
Hex Size      :      7/16 in
Cut-Off Factor      :      1.53 in
Material      :      Steel
Dimensions      :      1.99 in L
Hose Connection      :      3/16 in
Connection Type 1      :      Hose
Connection Size 1      :      3/16 in
Connection 2      :      7/16 in SAE Inverted Swivel
Connection Type 2      :      SAE Inverted Swivel
  • Gates® SureLok™ couplings for NABT (nylon air brake tubing)
