Aeroquip® 08E-508
Send Print
  1. pin-int

Aeroquip® 08E-508

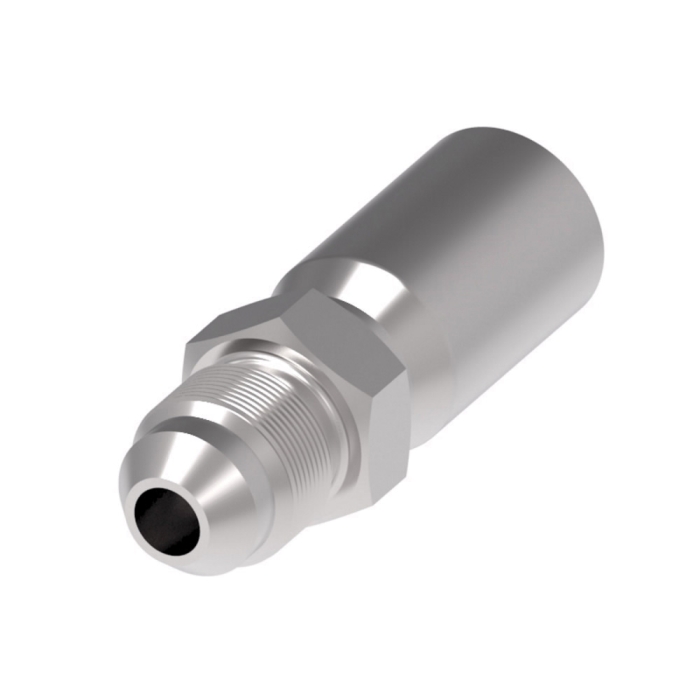

Aeroquip® Coll-O-Crimp E Zinc Clear Trivalent Chromate Carbon Steel Male SAE 37 deg JIC Permanent Rigid Straight Hose Fitting, 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 08E-508
  • MPN: 08E-508
  • UPC: 725975770009
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Permanent Rigid Straight Hose Fitting, Series: Coll-O-Crimp E, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 37 deg JIC, Gender 2: Male, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 13/16 in, 4000 psi, Cut-Off Factor: 1.14 in, Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: H009, H209, H243, H265, H275, H277, H285, H435, H436, S-TW, and SC-TW Series Hose, Dimensions: 2.24 in L x 0.95 in W x 0.95 in H

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Male
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      3/4-16
Hex Size      :      13/16 in
Pressure Rating      :      4000 psi
Cut-Off Factor      :      1.14 in
Material      :      Carbon Steel
Finish      :      Zinc Clear Trivalent Chromate
For Use With      :      H009, H209, H243, H265, H275, H277, H285, H435, H436, S-TW, and SC-TW Series Hose
Series      :      Coll-O-Crimp E
Dimensions      :      2.24 in L x 0.95 in W x 0.95 in H
Hose Connection      :      1/2 in in
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      1/2 in JIC
Connection Type 2      :      SAE 37 deg JIC

Applications: General-purpose low and medium-pressure hydraulics

Warranty: 5 Years Limited
