Gates® 71009608

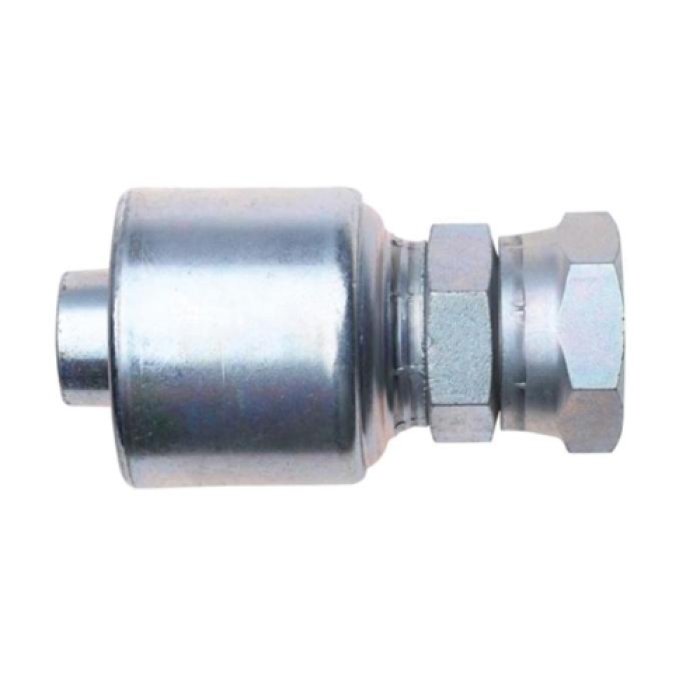

Gates® MegaCrimp® 6G-12FDLORX Crimp Straight Hose Fitting With O-Ring, 3/8 in Hose x 12 mm

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 6G-12FDLORX
  • MPN: 71009608
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® Crimp Straight Hose Fitting, Fitting Type: Hose Fitting, Connection Size 1: 3/8 in, Connection Type 1: Hose, Connection Size 2: 12 mm, Connection Type 2: Female DIN Light 24 deg Cone Swivel, Connection Type: Hose|Female Metric Swivel, Hose Dash Size: 06, Cut-Off Factor: 1.09 in, TuffCoat®, M18 x 1.5 Thread, 22 mm Hex, 2.19 in L

Connection Size 2      :      0.472 in
Hex Size      :      0.866 in
Finish      :      TuffCoat®
Fitting Type      :      Hose Fitting
Dimensions      :      2.19 in L
Connection Size 1      :      3/8 in
Hose Dash Size      :      06
  • One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torqueing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
  • MegaCrimp® couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
  • Surpassed one million impulse cycles during design testing
  • Environmentally-friendly TuffCoat® plating for 3X better corrosion-resistant than SAE standard
