MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp® coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus MegaCrimp® couplings are a fully qualified EN performance coupling.

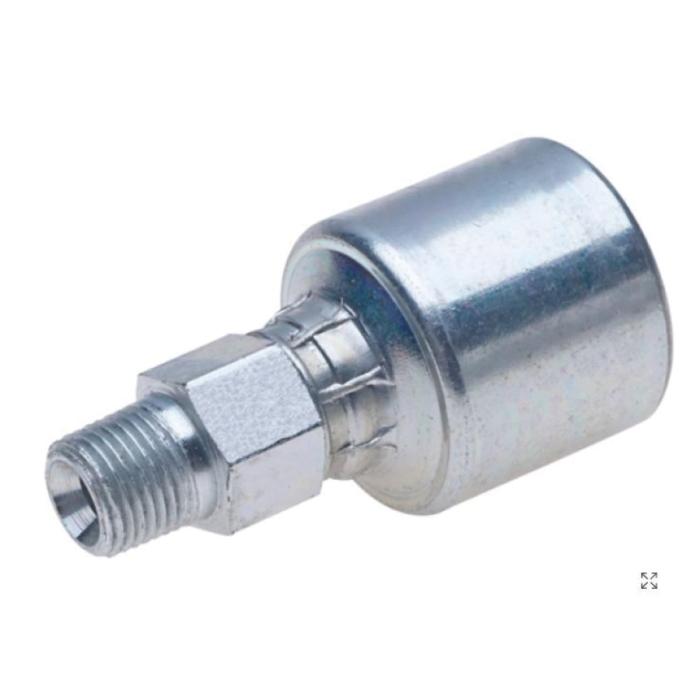

Gates® Crimp Straight Hose Fitting, Fitting Type: Hose Fitting, Connection Size 1: 1/4 in, Connection Type 1: Hose, Connection Size 2: 1/4 in, Connection Type 2: 30 deg Cone Seat MNPTF, Connection Type: Hose|MNPT, Hose Dash Size: 04, Cut-Off Factor: 1.14 in, TuffCoat®, 1/4-18 Thread, 9/16 in Hex, 2.17 in L
| Connection Size 2 | : | 1/4 in |
| Hex Size | : | 9/16 in |

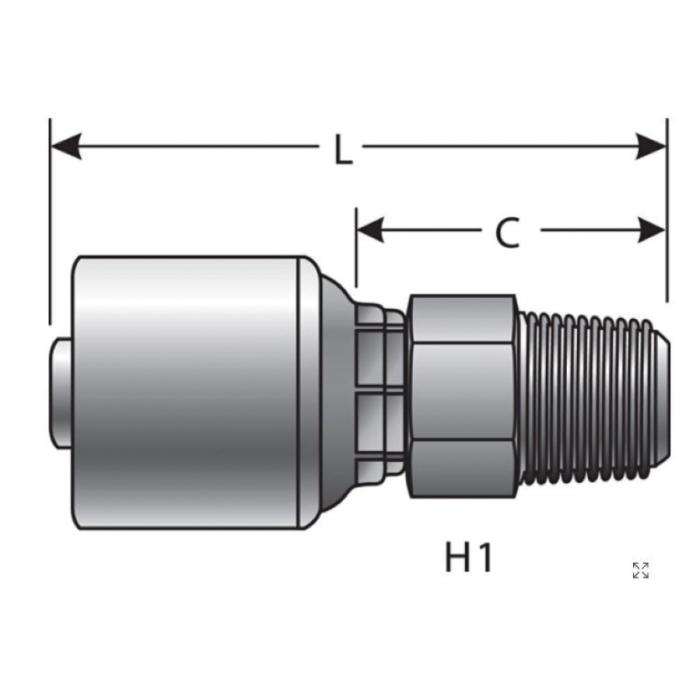

| Cut-Off Factor | : | 1.14 in |
| Finish | : | TuffCoat® |
| Fitting Type | : | Hose Fitting |
| Dimensions | : | 2.17 in L |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 1/4 in |
| Hose Dash Size | : | 04 |
| Connection Type 2 | : | 30 deg Cone Seat MNPTF |
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torqueing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
- MegaCrimp® couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
- Surpassed one million impulse cycles during design testing
- Environmentally-friendly TuffCoat® plating for 3X better corrosion-resistant than SAE standard
