Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral wire hydraulic hose applications. The innovative two-piece, no skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5X better corrosion resistance than SAE ASTM B117 specification.

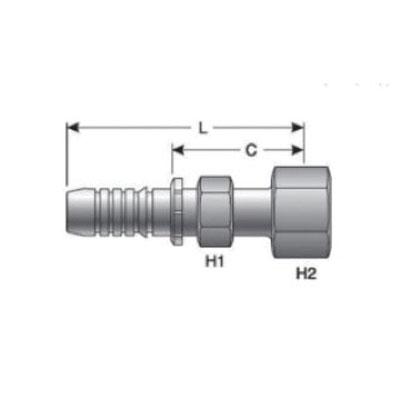

Gates® Crimp Straight Hose Fitting, Fitting Type: Hose Fitting, Connection Size 1: 1 in, Connection Type 1: Hose, Connection Size 2: 1 in, Connection Type 2: Female ORFS Swivel, Connection Type: Hose|Female ORFS Swivel, Hose Dash Size: 16, Cut-Off Factor: 2.14 in, Steel, Material Construction: Steel, TuffCoat®, 1-7/16-12 Thread, 41 x 41 mm Hex, 4.36 in L, Maximum Operating Pressure: 6000 psi, 250 deg F Operating
| Connection Size 2 | : | 1 in |
| Hex Size | : | 41 x 41 mm |
| Cut-Off Factor | : | 2.14 in |
| Material | : | Steel |
| Finish | : | TuffCoat® |
| Fitting Type | : | Hose Fitting |
| Dimensions | : | 4.36 in L |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 1 in |
| Hose Dash Size | : | 16 |
| Connection Type 2 | : | Female ORFS Swivel |
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Reduces parts inventory by 30% since only one stem is required for all spiral wire hose-types
- Surpasses one million impulse cycles
- One stem used for all spiral hoses
