Aeroquip® 4TA16FJ16 AER 4TA16FJ16 | Tipco Technologies
Aeroquip® 4TA16FJ16
Send Print
  1. pin-int

Aeroquip® 4TA16FJ16

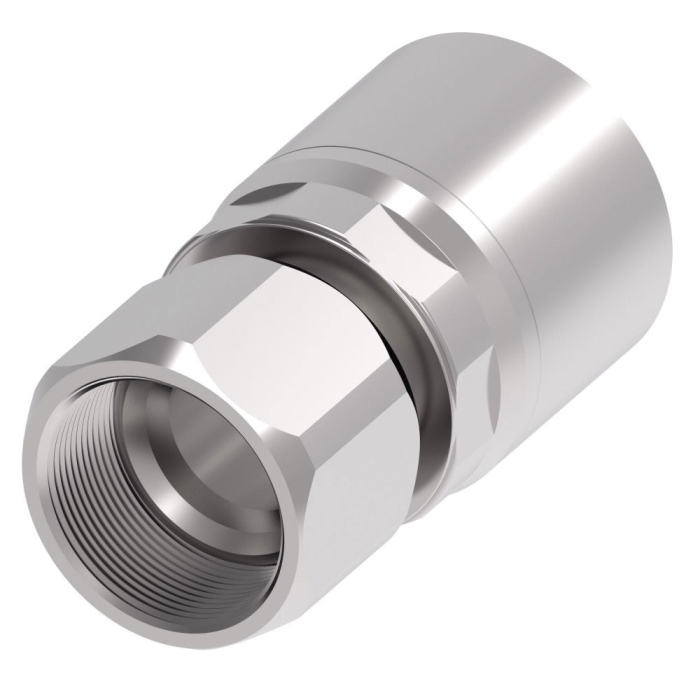

Aeroquip® 4T Series Dura-Kote Carbon Steel Female 37 deg JIC Swivel Crimp Straight Hose Fitting, 1 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4TA16FJ16
  • MPN: 4TA16FJ16
  • UPC: 810903033025
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Straight Hose Fitting, 4T Series, Hose Connection: 1 in, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1.63 x 1.5 in, Cut-Off Factor: 1.93 in, Carbon Steel, Finish: Dura-Kote, For Use With: 3TR18CT, 3TR8, 3TR8N, 3TR7, and 3TR7N Series Thermoplastic Hoses, Dimensions: 3.22 in L x 1.762 in W x 1.762 in H

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      1 in
Nominal Size      :      1 in
Thread Size 2      :      1-5/16-12
Hex Size      :      1.63 x 1.5 in
Cut-Off Factor      :      1.93 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      3TR18CT, 3TR8, 3TR8N, 3TR7, and 3TR7N Series Thermoplastic Hoses
Series      :      4T
Dimensions      :      3.22 in L x 1.762 in W x 1.762 in H
Hose Connection      :      1 in
Connection Type 1      :      Hose
Connection Size 1      :      1 in
Hose Dash Size      :      16
Connection 2      :      1 in JIC Swivel
Connection Type 2      :      37 deg JIC Swivel
