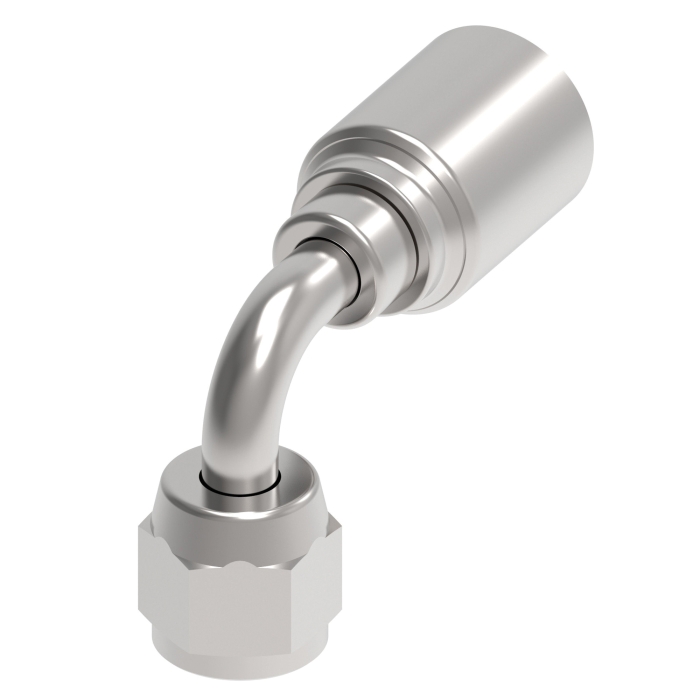

Danfoss 90 deg Elbow, 90 deg Elbow, Connection Size 2: 3/16, 0.56 Hex, 0.91 Cut-Off Factor, Carbon Steel, Dura-Kote, 4T Series, Dimensions: 1.95 in L x 0.68 in W x 1.41 in H, Connection Type 1: 37 deg JIC Swivel, Female Gender 1, Connection Size 1: 1/4, 3 Hose Dash, 3/16 in Hose Connection 2, Connection Type 2: Hose
| Fitting Type | : | 90 deg Elbow |
| Connection Size 2 | : | 3/16 in |
| Hex Size | : | 0.56 in |
| Cut-Off Factor | : | 0.91 in |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| Series | : | 4T Series |
| Dimensions | : | 1.95 in L x 0.68 in W x 1.41 in H |
| Connection Type 1 | : | 37 deg JIC Swivel |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/4 in |
| Hose Dash Size | : | 3 |
| Connection 2 | : | 3/16 in Hose |
| Connection Type 2 | : | Hose |
- Seamless compatibility - Synflex Optimum fittings are optimized to work together with Synflex Optimum thermoplastic hydraulic hoses
- Single piece design - Synflex Optimum 4TA fittings follow a simple one-piece design that reduces matching errors during assembly, eliminates brazing failure risks, and lowers assembly time
- Captive nut - A captive nut eliminates the weak spots found in other fittings and it evenly distributes the force applied during assembly, helping prevent cracks and leaks that halt work ows and lead to unplanned downtime
- Easy assembly - easier insertion, less force needed during assembly to push fitting onto hose
- Over 500+ combinations of terminal ends
