Gates® 20-20MP
Send Print
  1. pin-int

Gates® 20-20MP

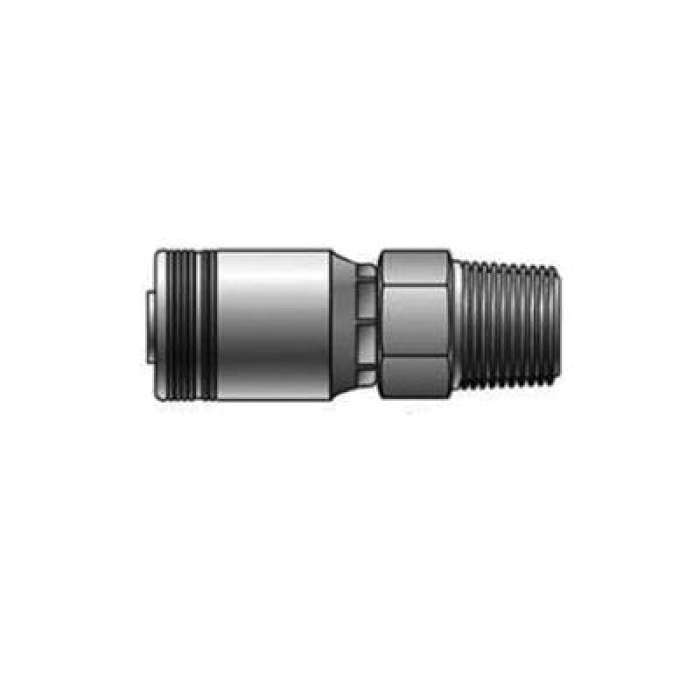

Gates® 20-20MP Crimp Straight Hose Fitting, 1-1/4 in x 1-1/4 in, Hose x 30 deg Cone Seat MNPTF

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 20-20MP
  • MPN: 20-20MP
  • UPC: 072053137439
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® Crimp Straight Hose Fitting, Male Gender 2, Connection Size 2: 1-1/4 in, 1-1/4 in Nominal, 1-1/4-11-1/2 Thread Size 2, 1-3/4 in Hex, 2.15 in Cut-Off Factor, For Use With: Hoses, 4.45 in L, 1-1/4 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, 20 Hose Dash, 1-1/4 in 30 deg Cone Seat MNPTF Connection 2, Connection Type 2: 30 deg Cone Seat MNPTF

Fitting Type      :      Hose Fitting
Gender 2      :      Male
Connection Size 2      :      1-1/4 in
Nominal Size      :      1-1/4 in
Thread Size 2      :      1-1/4-11-1/2
Hex Size      :      1-3/4 in
Cut-Off Factor      :      2.15 in
For Use With      :      Hoses
Dimensions      :      4.45 in L
Hose Connection      :      1-1/4 in
Connection Type 1      :      Hose
Connection Size 1      :      1-1/4 in
Hose Dash Size      :      20
Connection 2      :      1-1/4 in 30 deg Cone Seat MNPTF
Connection Type 2      :      30 deg Cone Seat MNPTF
  • pdfCatalog https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_20GL_20FL_Catalog.pdf
