Gates® 6PCTS-8MP

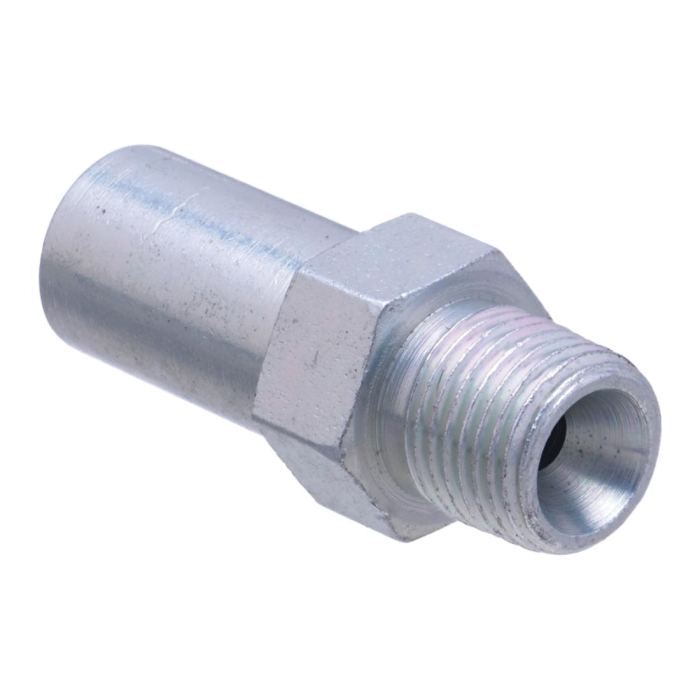

Gates® 6PCTS-8MP Coupling, 3/8 in x 3/8 in, Hose x 30 deg Cone Seat MNPTF

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 6PCTS-8MP
  • MPN: 6PCTS-8MP
  • UPC: 072053136555
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® PCTS couplings for thermoplastic hose provide a one-piece solution for building assemblies with 1/8 in and 3/16 in thermoplastic hose.

Gates® Coupling, Male Gender 2, Connection Size 2: 3/8 in, 3/8 in Nominal, 15/16 in Hex, 1.63 in Cut-Off Factor, 2.92 in L, 3/8 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 3/8 in, 3/8 in 30 deg Cone Seat MNPTF Connection 2, Connection Type 2: 30 deg Cone Seat MNPTF

Fitting Type      :      Coupling
Gender 2      :      Male
Connection Size 2      :      3/8 in
Nominal Size      :      3/8 in
Hex Size      :      15/16 in
Cut-Off Factor      :      1.63 in
Dimensions      :      2.92 in L
Hose Connection      :      3/8 in
Connection Type 1      :      Hose
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in 30 deg Cone Seat MNPTF
Connection Type 2      :      30 deg Cone Seat MNPTF
  • Five-coupling families available to meet the needs of applications utilizing thermoplastic hose
  • Installed through swaging
