Gates® 48GL-48FL90
Send Print
  1. pin-int

Gates® 48GL-48FL90

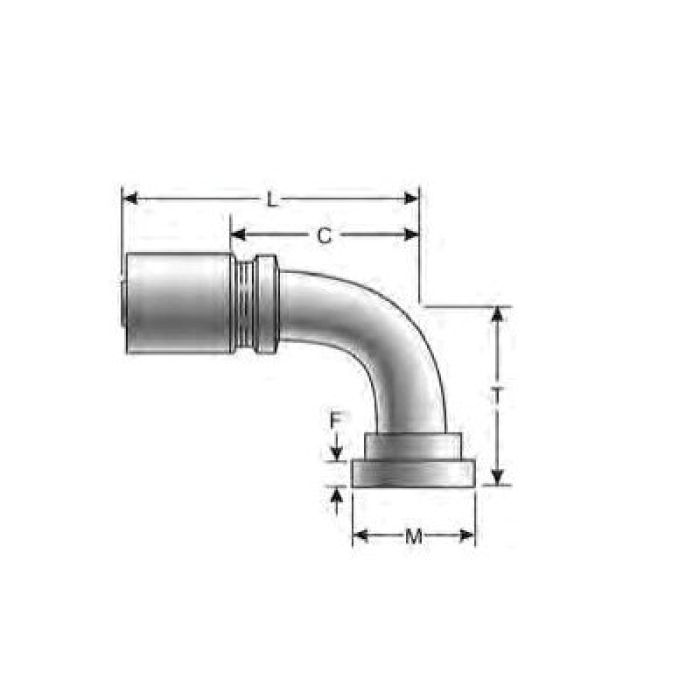

Gates® GL® 48GL-48FL90 90 deg Coupling, 3 in x 3 in, Hose x Code 61 O-ring Flange, Steel

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 48GL-48FL90
  • MPN: 48GL-48FL90
  • UPC: 072053189209
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose. Not to be used as live swivel. Special GL dies required.

Gates® 90 deg Coupling, Connection Size 2: 3 in, 3 in Nominal, 6.62 in Cut-Off Factor, Steel, 9.7 in L, 3 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 3 in, 3 in Code 61 O-Ring Flange Connection 2, Connection Type 2: Code 61 O-Ring Flange

Fitting Type      :      90 deg Coupling
Connection Size 2      :      3 in
Nominal Size      :      3 in
Cut-Off Factor      :      6.62 in
Material      :      Steel
Dimensions      :      9.7 in L
Hose Connection      :      3 in
Connection Type 1      :      Hose
Connection Size 1      :      3 in
Connection 2      :      3 in Code 61 O-ring Flange
Connection Type 2      :      Code 61 O-ring Flange
  • Designed for larger diameter hoses up to 4 in ID
  • Short body length provides the necessary grip for low pressure hose requirements
  • Bubble pattern crimp design ensures optimal sealing to helical wire hoses on return vacuum applications
