Synflex Optimum by Danfoss 4TA12FR12

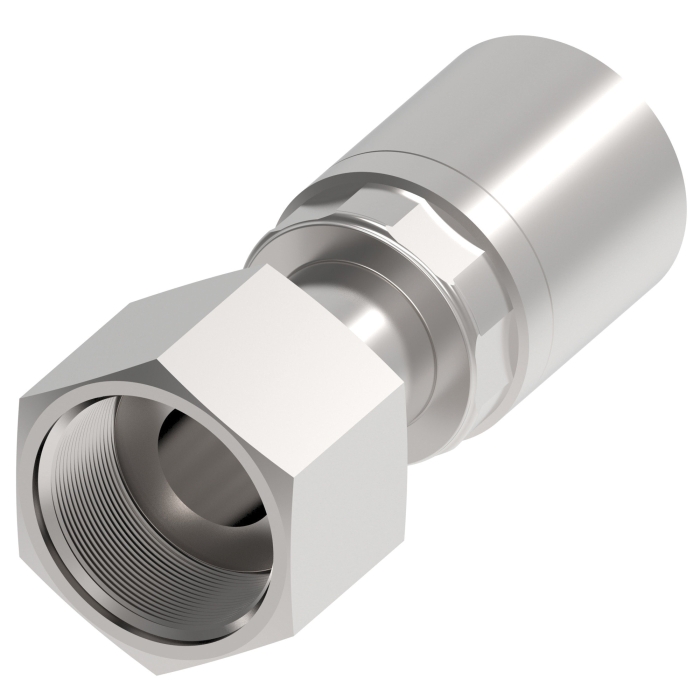

Synflex Optimum by Danfoss 4T Series 4TA12FR12 Straight Hose Fitting, 3/4 in x 3/4 in, ORFS Swivel x Hose, Carbon Steel
- Manufacturers: Danfoss
- Brand Name: Synflex Optimum by Danfoss
- Tipco Part No: AER 4TA12FR12
- MPN: 4TA12FR12
- UPC: 810903034862
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Synflex Optimum by Danfoss Straight Hose Fitting, Hose Fitting, Connection Size 2: 3/4, 1.187 x 1.375 Hex, 1.72 Cut-Off Factor, Carbon Steel, Dura-Kote, 4T Series, Dimensions: 3.5 in L x 1.375 in W x 1.58 in H, Connection Type 1: ORFS Swivel, Female Gender 1, Connection Size 1: 3/4, 12 Hose Dash, 3/4 in Hose Connection 2, Connection Type 2: Hose
| Fitting Type | : | Hose Fitting |
| Connection Size 2 | : | 3/4 in |
| Hex Size | : | 1.187 x 1.375 in |
| Cut-Off Factor | : | 1.72 in |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| Series | : | 4T Series |
| Dimensions | : | 3.5 in L x 1.375 in W x 1.58 in H |
| Connection Type 1 | : | ORFS Swivel |
| Gender 1 | : | Female |
| Connection Size 1 | : | 3/4 in |
| Hose Dash Size | : | 12 |
| Connection 2 | : | 3/4 in Hose |
| Connection Type 2 | : | Hose |
- Seamless compatibility - Synflex Optimum fittings are optimized to work together with Synflex Optimum thermoplastic hydraulic hoses
- Single piece design - Synflex Optimum 4TA fittings follow a simple one-piece design that reduces matching errors during assembly, eliminates brazing failure risks, and lowers assembly time
- Captive nut - A captive nut eliminates the weak spots found in other fittings and it evenly distributes the force applied during assembly, helping prevent cracks and leaks that halt work ows and lead to unplanned downtime
- Easy assembly - easier insertion, less force needed during assembly to push fitting onto hose
- Over 500+ combinations of terminal ends
