Aeroquip® by Danfoss 1G20FLA20

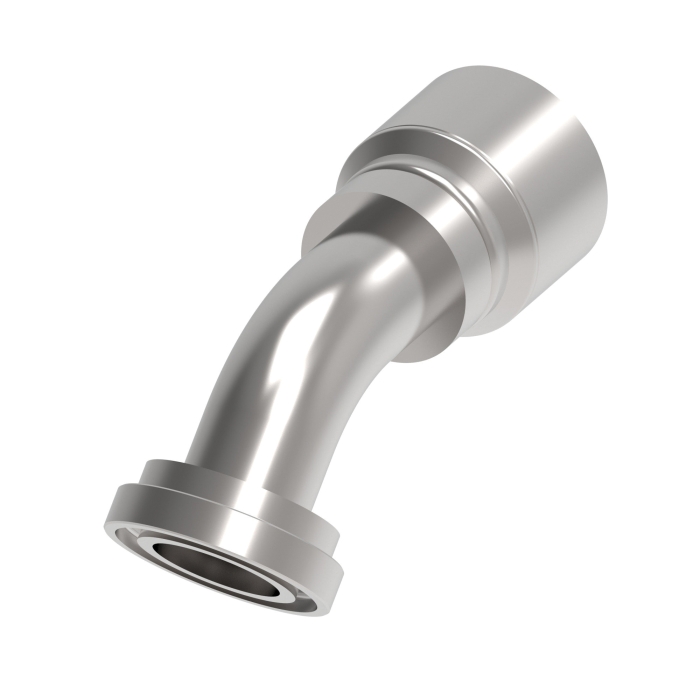

Aeroquip® by Danfoss OTC Series 1G20FLA20 45 deg Elbow, 1-1/4 in x 1-1/4 in, Code 61 Flange x Code 61 Flange

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip® by Danfoss
  • Tipco Part No: AER 1G20FLA20
  • MPN: 1G20FLA20
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® by Danfoss 45 deg Elbow, 45 deg Elbow, Female Gender 2, Connection Size 2: 1-1/4, 3.55 Cut-Off Factor, Carbon Steel, Zinc-Plated, OTC Series, 20 Hose Dash, 1-1/4 Hose Connection, Connection Type 1: Code 61 Flange, Female Gender 1, Connection Size 1: 1-1/4, 1-1/4 in Female Code 61 Flange Connection 2, Connection Type 2: Code 61 Flange

Fitting Type      :      45 deg Elbow
Gender 2      :      Female
Connection Size 2      :      1-1/4 in
Cut-Off Factor      :      3.55 in
Material      :      Carbon Steel
Finish      :      Zinc-Plated
Series      :      OTC Series
Hose Dash Size      :      20
Hose Connection      :      1-1/4 in
Connection Type 1      :      Code 61 Flange
Gender 1      :      Female
Connection Size 1      :      1-1/4 in
Connection 2      :      1-1/4 in Female Code 61 Flange
Connection Type 2      :      Code 61 Flange
  • pdfCatalog https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_by_Danfoss_190263_8S_Catalog.pdf
  • pdfFull Engineering Drawing https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_by_Danfoss_1G20FLA20_Full_Engineering_Drawing.pdf
