Aeroquip® 1A25DSB16
Send Print
  1. pin-int

Aeroquip® 1A25DSB16

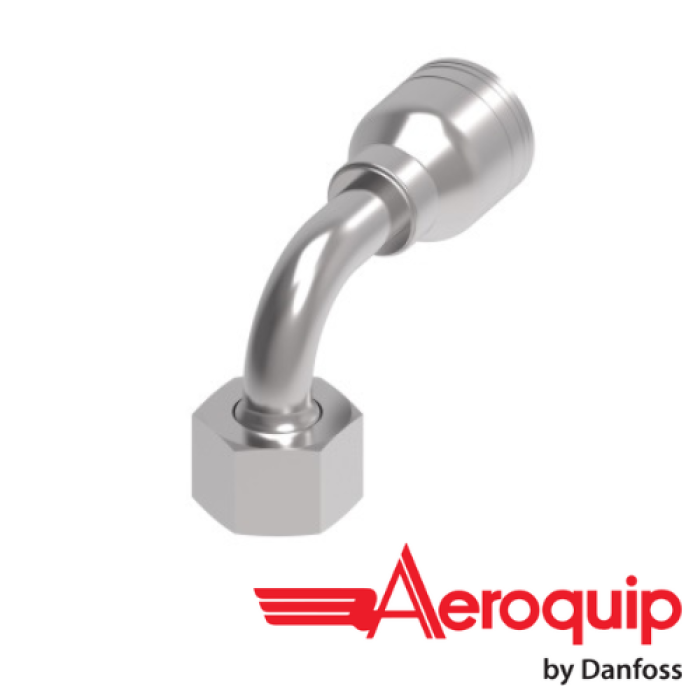

Aeroquip® 1A Series Dura-Kote Carbon Steel Female DKO Swivel Heavy-Duty Crimp Hose 90 deg Elbow, 1 in x 30 mm

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1A25DSB16
  • MPN: 1A25DSB16
  • UPC: 678146124180
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Heavy-Duty Crimp Hose 90 deg Elbow, 1A Series, Hose Connection: 1 in, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: DKO Swivel, Gender 2: Female, Connection Size 2: 30 mm, Nominal Size: 30 in, Thread Size 2: M42 x 2, Hex Size: 1.96 in, Cut-Off Factor: 2.74 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 5.04 in L x 1.941 in W x 3.88 in H

Fitting Type      :      90 deg Elbow
Gender 2      :      Female
Connection Size 2      :      30 mm
Nominal Size      :      30 in
Thread Size 2      :      M42 x 2
Hex Size      :      1.96 in
Cut-Off Factor      :      2.74 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses
Series      :      1A
Dimensions      :      5.04 in L x 1.941 in W x 3.88 in H
Hose Dash Size      :      16
Hose Connection      :      1 in
Connection Type 1      :      Hose
Gender 1      :      Female
Connection Size 1      :      1 in
Connection 2      :      30 mm DKO Swivel
Connection Type 2      :      DKO Swivel

Applications: General-purpose low and medium-pressure hydraulics
