Aeroquip® 1A40DLB24

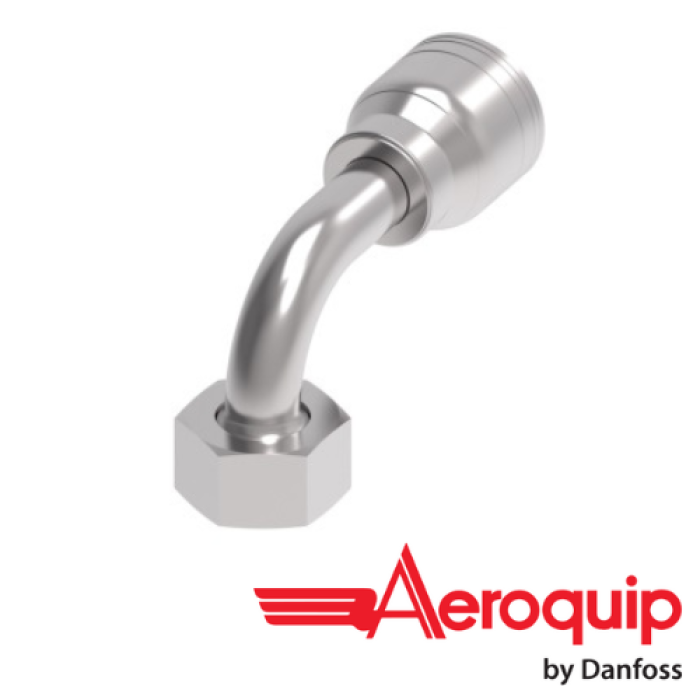

Aeroquip® 1A Series Dura-Kote Carbon Steel Female DKO Swivel Light-Duty Crimp Hose 90 deg Elbow, 1-1/2 in x 52 mm
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER 1A40DLB24
- MPN: 1A40DLB24
- UPC: 678146124272
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® Light-Duty Crimp Hose 90 deg Elbow, 1A Series, Hose Connection: 1-1/2 in, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: DKO Swivel, Gender 2: Female, Connection Size 2: 52 mm, Thread Size 2: M52 x 2, Hex Size: 2.362 in, Cut-Off Factor: 4.16 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 7.16 in L x 2.697 in W x 5.51 in H
| Fitting Type | : | 90 deg Elbow |
| Gender 2 | : | Female |
| Connection Size 2 | : | 52 mm |
| Thread Size 2 | : | M52 x 2 |
| Hex Size | : | 2.362 in |
| Cut-Off Factor | : | 4.16 in |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| For Use With | : | 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses |
| Series | : | 1A |
| Dimensions | : | 7.16 in L x 2.697 in W x 5.51 in H |
| Hose Dash Size | : | 24 |
| Hose Connection | : | 1-1/2 in |
| Connection Type 1 | : | Hose |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1-1/2 in |
| Connection 2 | : | 52 mm DKO Swivel |
| Connection Type 2 | : | DKO Swivel |
Applications: General-purpose low and medium-pressure hydraulics
Catalog/Catalog Cut Sheet
