410-356-0003
.png)

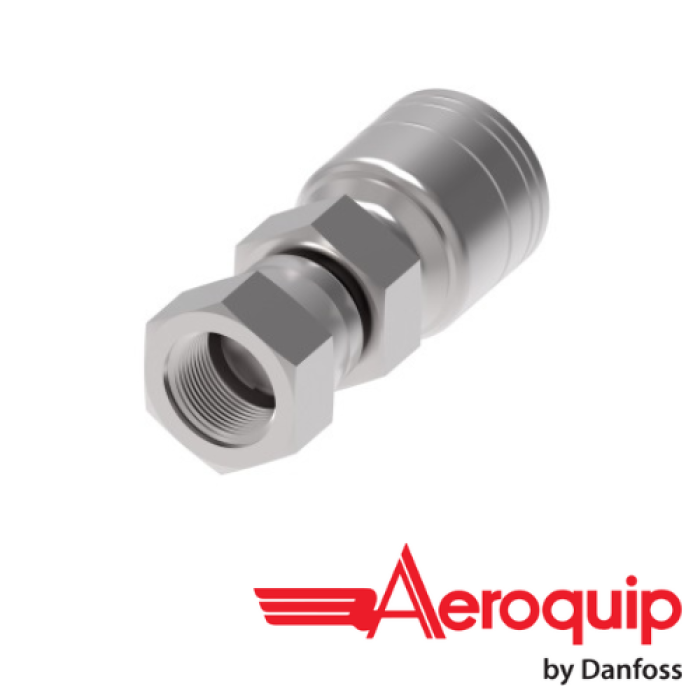

Aeroquip® Crimp Straight Hose Fitting, 1A Series, Hose Connection: 5/8 in, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: Komatsu Swivel, Gender 2: Female, Connection Size 2: 24 mm, Thread Size 2: M24 x 1.5, Hex Size: 1.26 x 1.18 in, Cut-Off Factor: 1.81 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 2.97 in L x 1.386 in W x 1.386 in H
| Fitting Type | : | Straight Hose Fitting |
| Gender 2 | : | Female |
| Connection Size 2 | : | 24 mm |
| Thread Size 2 | : | M24 x 1.5 |
| Hex Size | : | 1.26 x 1.18 in |
| Cut-Off Factor | : | 1.81 in |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| For Use With | : | 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses |
| Series | : | 1A |
| Dimensions | : | 2.97 in L x 1.386 in W x 1.386 in H |
| Hose Dash Size | : | 10 |
| Hose Connection | : | 5/8 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 5/8 in |
| Connection 2 | : | 24 mm Komatsu Swivel |
| Connection Type 2 | : | Komatsu Swivel |
Applications: General-purpose low and medium-pressure hydraulics
Catalog/Catalog Cut Sheet
