Aeroquip® 1AA6FSB6
Send Print
  1. pin-int

Aeroquip® 1AA6FSB6

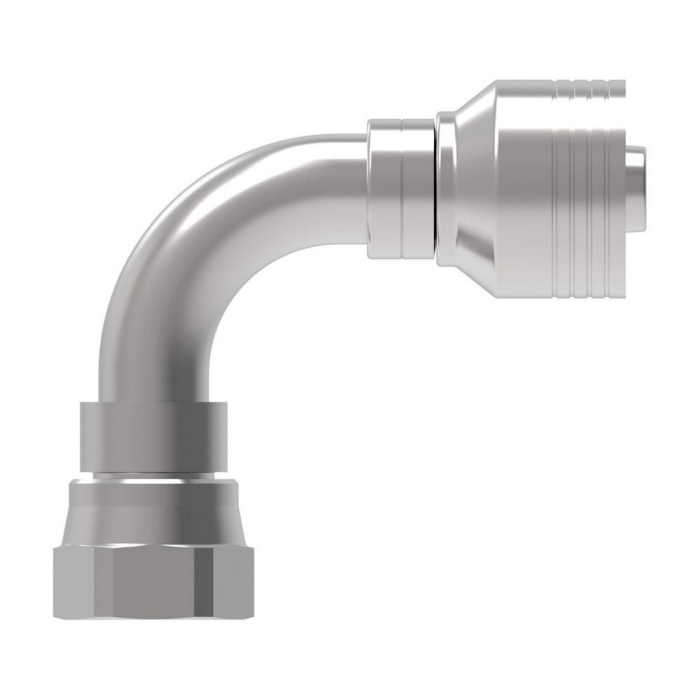

Aeroquip® 1A Series Dura-Kote Carbon Steel Female SAE 45 deg Swivel Crimp Hose 90 deg Elbow, 3/8 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1AA6FSB6
  • MPN: 1AA6FSB6
  • UPC: 678146127310
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Hose 90 deg Elbow, 1A Series, Hose Connection: 3/8 in, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE 45 deg Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 5/8-18, Hex Size: 3/4 in, Cut-Off Factor: 1.01 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2661(–12 thru –32), FC310, FC510, FC579, FC611, FC619 (–12 thru –32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681–6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 2.381 in L x 1.067 in W x 2.29 in H

Fitting Type      :      90 deg Elbow
Gender 2      :      Female
Connection Size 2      :      3/8 in
Nominal Size      :      3/8 in
Thread Size 2      :      5/8-18
Hex Size      :      3/4 in
Cut-Off Factor      :      1.01 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2661(–12 thru –32), FC310, FC510, FC579, FC611, FC619 (–12 thru –32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681–6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses
Series      :      1A
Dimensions      :      2.381 in L x 1.067 in W x 2.29 in H
Hose Dash Size      :      06
Hose Connection      :      3/8 in
Connection Type 1      :      Hose
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in SAE Swivel
Connection Type 2      :      SAE 45 deg Swivel

Applications: General-purpose low and medium-pressure hydraulics

  • linkCAD File Link https://www.eatonpowersource.com/3d-models/partsolutions/?partnumber=1aa6fsb6&modelfilename=pws_0004029stp.stp
  • pdfCatalog/Catalog Cut Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_210212-16S_CAT.pdf
