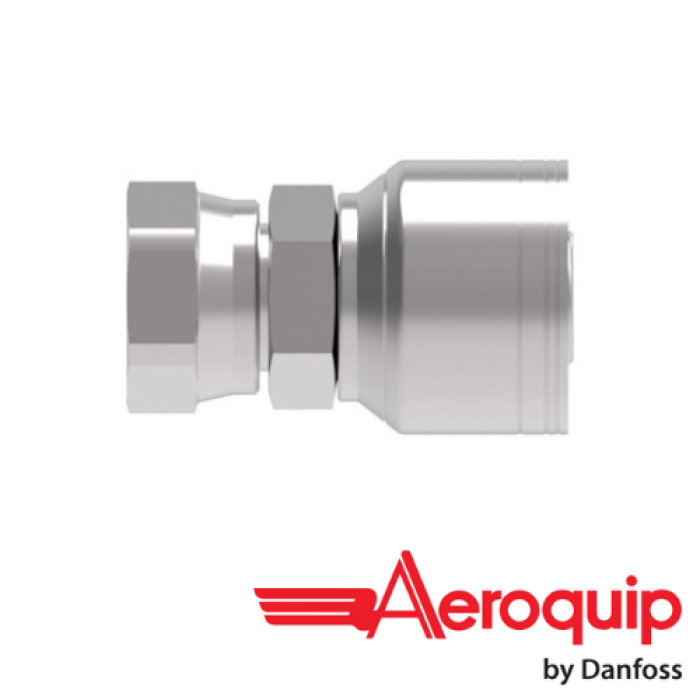

Aeroquip® Crimp Straight Hose Fitting, 1A Series, Hose Connection: 3/8 in, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: NPSM Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 0.875 x 0.6875 in, Cut-Off Factor: 1.2 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 1.95 in L x 1.067 in W x 1.067 in H
| Fitting Type | : | Straight Hose Fitting |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/8 in |
| Nominal Size | : | 3/8 in |
| Thread Size 2 | : | 3/8-18 |
| Hex Size | : | 0.875 x 0.6875 in |
| Cut-Off Factor | : | 1.2 in |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| For Use With | : | 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses |
| Series | : | 1A |
| Dimensions | : | 1.95 in L x 1.067 in W x 1.067 in H |
| Hose Dash Size | : | 06 |
| Hose Connection | : | 3/8 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 3/8 in |
| Connection 2 | : | 3/8 in NPSM Swivel |
| Connection Type 2 | : | NPSM Swivel |
Applications: General-purpose low and medium-pressure hydraulics
